Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service
Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service
Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service
1 / 3
Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service
Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service
Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service

Wholesale Rotate the Polishing Machine Suitable for Various Material Polishing Factories, Service

•One station is for loading and unloading, the other three stations for polishing. The machine can be produce different products at the same time.

•Fully Automation, Multiple process can we achvie one different station, rough polishing ,fine polishing depend on different buffing wheels.

Send Inquiry

Product Description

📹 Finished Samples
📋 Product Introduction
⚙

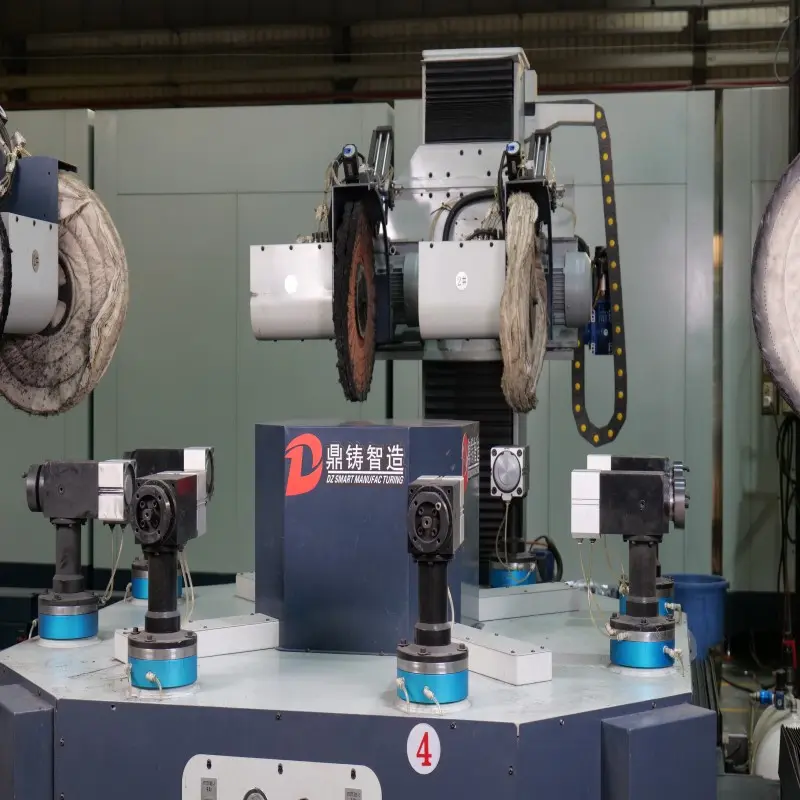

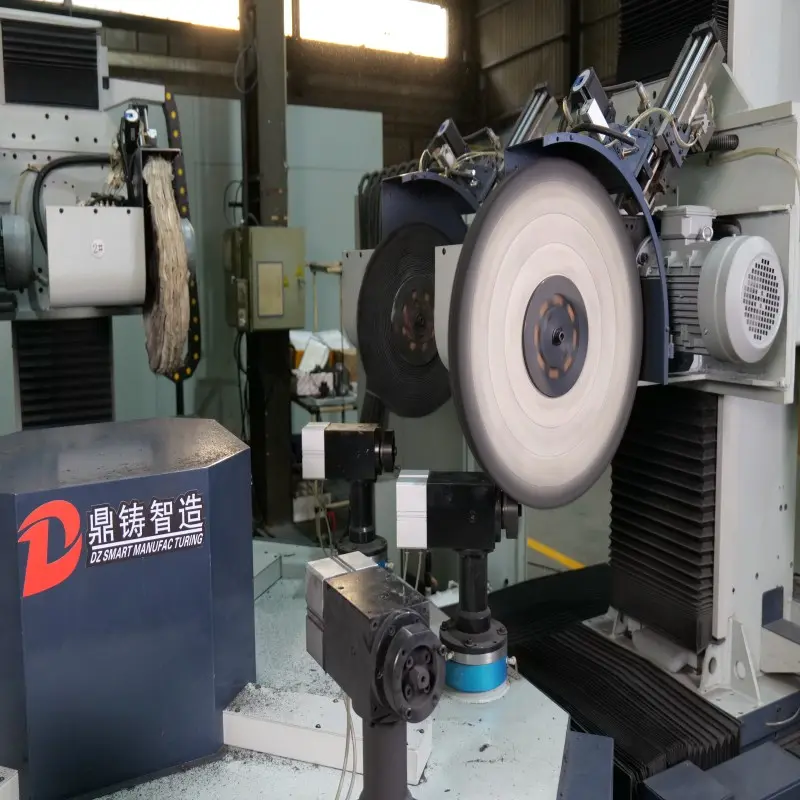

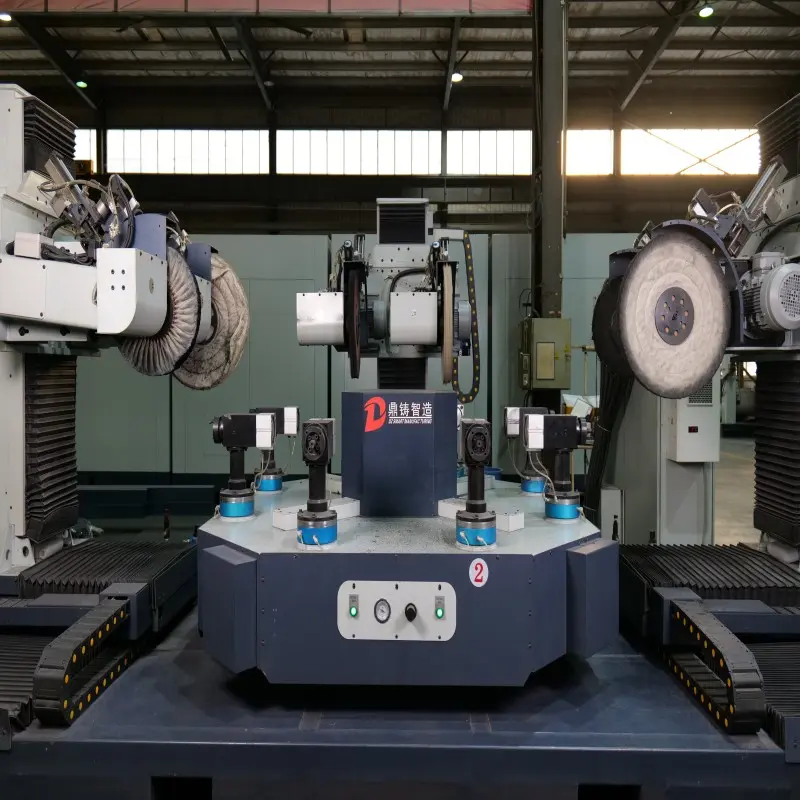

Efficiency: The automatic polishing machine is an exclusive system consisting of 8 heads with 6 Axis and a rotary table. Multiple stations simultaneous operation ensures high flexibility and high efficiency.
🔄
Flexibility: The machine features four stations, each with two heads. One station handles loading/unloading while three handle polishing, allowing simultaneous production of different items.
🚀
Full Automation: Achievement of rough to fine polishing across different stations using specific buffing wheels.
📈
Smart Control: Adopts DZ motion control technology for stable performance and high precision. Programming is simplified through teaching methods with a portable handheld device.
🔧
Compensation Performance: Automatic detection and compensation for polishing cloth wheel wear and linear speed changes as diameters reduce.
💧
Waxing System: Flexible setting of wax spraying frequency and duration, compatible with solid or liquid compounds.
🚜 Applications

Our automation solutions are ideal for high-precision finishing of:

  • Faucets and plumbing components
  • Automobile spare parts (bumpers, rims, supports)
  • Locks, door handles, and hinges (Zamak, Aluminum)
  • Precision hardware and decorative components
Faucet
Faucet (3)
Faucet (7)
Faucet (6)
Faucet (5)
Faucet (8)
🏗 Machine Layout & Samples
Brass faucet polishing
Basin mixer polishing
Plumbing component polishing
Zinc alloy castings polishing
Water tap grinding and polishing machine
Castings polishing
📊 Technical Parameters
Item Four-station Parameters
Size (L*W*H)6310 * 4170 * 2400 mm
Power50.2 KW
Rated Voltage380V 50Hz
Max. Polishing Wheel Diameter600mm
Min. Polishing Wheel Diameter400mm
X / Y / Z Axis Travel1000 / 900 / 700 mm
U / V / W Axis Travel70° to -30° / ±720° / ±720°
Programming Storage≥ 200 programs
Waxing MethodSolid compound or Liquid wax
Machine WeightAbout 10.5T
Air Pressure≥ 0.6Mpa (100L/min)
🛡 Warranty & After-Sales
Code Items Details
1Machine Warranty12 months
2Service Response TimeWithin 24 hours
3Installation & CommissioningWithin 10 days included at site
🏭 Factory & Workshop
factory
workshop
Xiamen factory
🎖 Certificates & Exhibitions
Certificate 1
Certificate 2
Certificate 3
ISH Frankfurt
KBC Fair
Exhibition
❓ Frequently Asked Questions
1. What materials can this automatic polishing machine handle?
The system is designed for a wide range of metals, including brass, aluminum, zinc alloy (Zamak), and stainless steel components commonly used in faucets, auto parts, and hardware.
2. Is it possible to produce different products at the same time?
Yes. With its four-station rotary design, the machine can process multiple types of products simultaneously across the three active polishing stations.
3. How does the machine handle polishing wheel wear?
The control system automatically detects torque changes as the buffing wheel wears down. It then provides automatic compensation in all directions and adjusts the linear speed to maintain consistent quality.
4. Is the programming difficult for complex shapes?
No. The machine uses a teaching programming method with a handheld device. You can manually simulate the polishing track, and the system records it for automated operation.
5. What kind of after-sales support is provided?
We offer a 12-month warranty, 24-hour response time for technical queries, and localized support in several regions including onsite installation and commissioning.
6. Does the machine support multi-language interfaces?
Yes, the Touch Panel features both Chinese and English (CN/EN) displays for easy parameter setting and fault code troubleshooting.
