Widely used in various industries for surface finishing:
| Code | Items | Parameters |
|---|---|---|
| 1 | Dimensions (L*W*H) | 4000 * 3400 * 3000 mm |
| 2 | Machine Power | 35 kW |
| 3 | Rated Voltage | 380 V |
| 4 | Max. Diameter of polishing wheel | 600 mm |
| 5 | Min. Diameter of polishing wheel | 400 mm |
| 6 | X-Axis travel (mm) | 1000 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (degree) | ±90° |
| 10 | V-Axis travel (degree) | ±360° |
| 11 | W-Axis travel (degree) | ±720° |
| 12 | Program | 500 lines 50 programs / 200 lines 125 programs |
| 13 | Polishing Wax | Solid Compound or Liquid |
| Code | Items | Details |
|---|---|---|
| 1 | Machine warranty | 12 months |
| 2 | Service response time | Within 24 hours |
| 3 | Installation Fee | Within 10 days included; Over 10 days: USD 200/day per person |
A: The machine is equipped with 6 NC axes, allowing for high-precision control and the ability to process 4 work pieces simultaneously.
A: Yes. The system automatically detects torque changes and diameter reduction to provide both pressure and linear speed compensation.

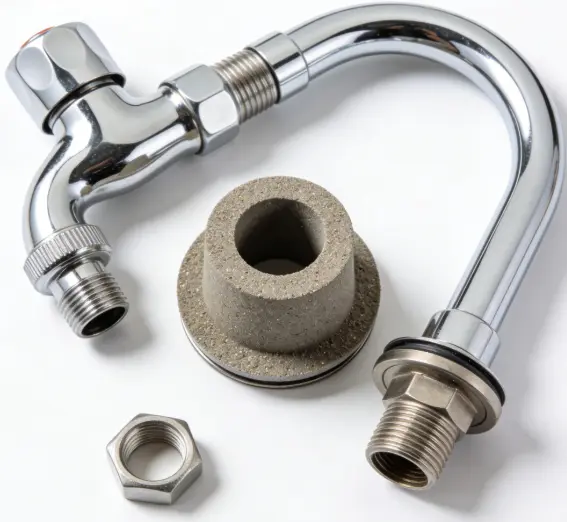

A: The machine is ideal for faucets, automotive components (rims, bumpers), locks, door handles, and various metal castings.
A: The standard delivery time is 90 days after the contract is confirmed and the deposit is received.
A: We provide a 12-month machine warranty with a service response time within 24 hours for troubleshooting.
A: The system can store up to 50 polishing programs (500 lines each) or up to 125 programs (200 lines each), adjustable at any time.
