| Description | UOM | Specification |
|---|---|---|
| X/Y/Z/U/V/W Axis: | ||
| X Axis travel | mm | 1000 |
| X Axis Max. speed | m/min | 20 |
| Y Axis travel | mm | 700 |
| Y Axis Max. speed | m/min | 20 |
| Z Axis travel | mm | 700 |
| Z Axis Max. speed | m/min | 20 |
| U Axis | Deg. | ±90° |
| U Axis Max. speed | Deg./sec | 20 |
| V Axis | Deg. | ±360° |
| V Axis Max. speed | Deg./sec | 30 |
| W Axis | Deg. | ±360° |
| W Axis Max. speed | Deg./sec | 30 |

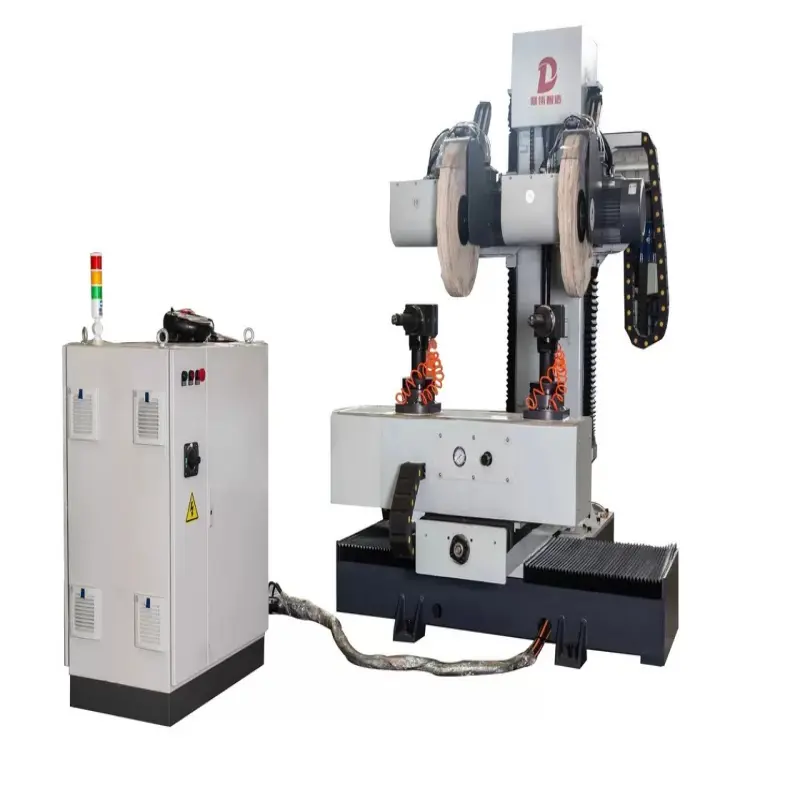

| Buffing/Polishing Heads: | ||
| Number of head | Nos. | 2 |
| Main Spindle Polishing Motor | KW | 11 KW (2 nos. x 5.5 kw each) |
| Permissible Work Height | mm | 300 |
| Polishing wheel size (consumable) | mm | 600*60*15 mm |
| Polishing compound (consumable) | Type | Solid Wax |
| Polishing compound size (consumable) | mm | 450*55*30 mm |
| Polishing compound application | - | Automatic device for the solid compound feeding to the polishing wheel on a regular timing basis. |
| Type of Polishing wheel | - | Cotton, Solid stitching wheel |
| Machine Warranty | - | 1 year |
| Warranty of Controller | - | 2 years |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | |
| 2 | Service response time | Within 24 hours | |
| 3 | Installation and Commissioning Fees at End User Site |
• Within 10 days: included • Over 10 days: USD 200 per day and per person plus travel costs and accommodation • Translator cost will be paid by end user, additional travel costs, meals, accommodation |

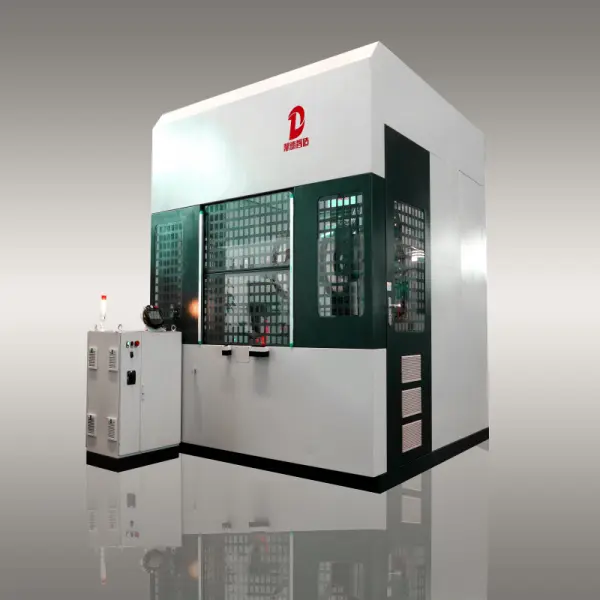

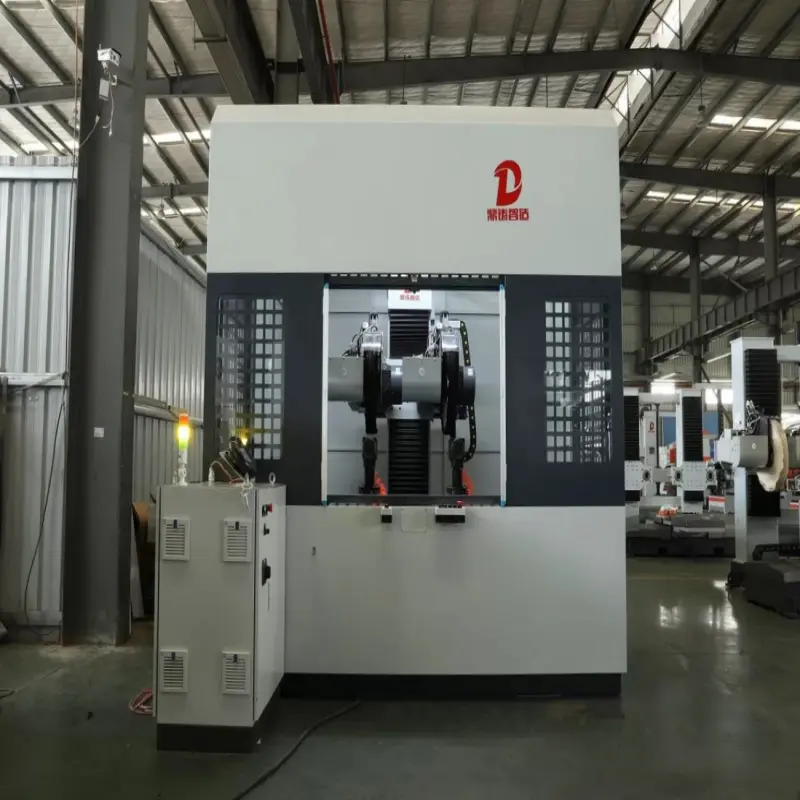

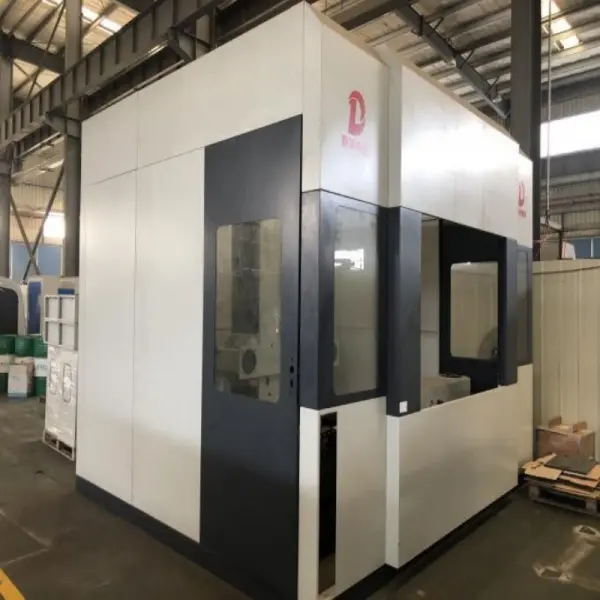

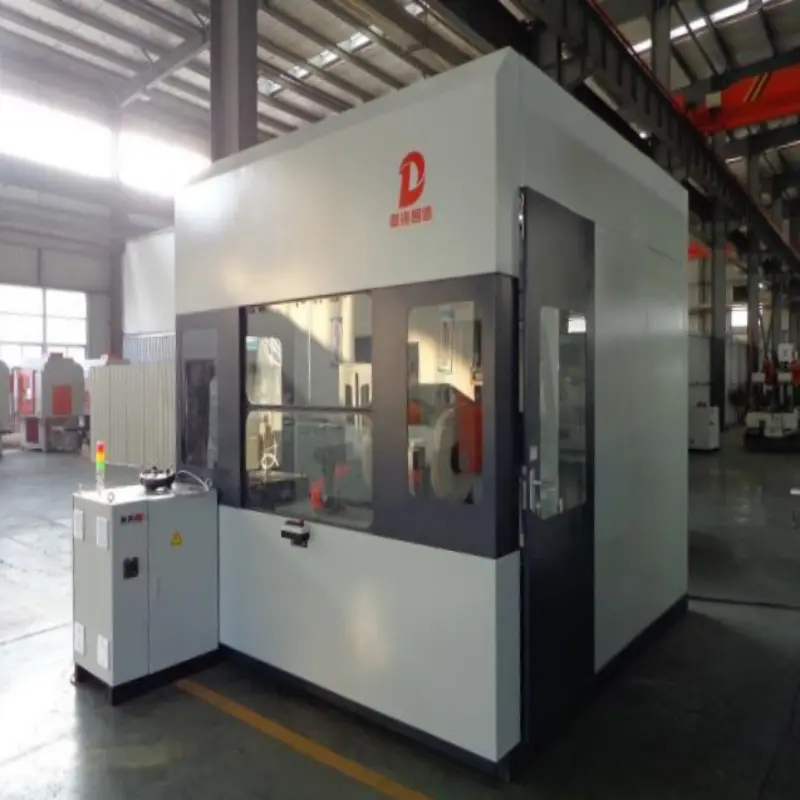

The machine is optimized for heavy-duty, high-precision grinding and polishing. Main applications include sanitary faucets, locks and door handles, Zamak handles, door hinges, aluminum handles, as well as automotive components such as bumpers, supports, wheel rims, and various spare parts.
When the polishing cloth wheel starts to wear down, the system detects a drop in torque and automatically initiates real-time multi-directional position compensation. Simultaneously, as the wheel diameter decreases, the digital control system automatically increases the rotation speed to maintain consistent, optimal linear speed and polishing pressure.
The machine features Italy's high-precision PROMAX motion control system. The proprietary software supports programmable operations through a portable handheld device. It includes a manual simulation mode to record manual craftsmanship trajectories and save them as parameter-set automatic programs.
Yes, it features an automatic waxing program setting. You can freely set the wax spraying time and frequency based on the physical properties of your product. The machine is compatible with both solid and liquid polishing wax, using a dedicated auto-feeding mechanism for solid compounds.
We offer a 12-month standard warranty on the entire machine, with an extended 2-year warranty specifically for the motion controller. Our technical support guarantees an initial response within 24 hours. For international installations, commissioning services are included for the first 10 days on site.
The touch controller supports full digital control and can save up to 50 individual, customized polishing recipes. These programs can be easily renamed, modified, and invoked instantly at any time via the bilingual English/Chinese touch user interface.
