China Automatic Polishing Machine for Metal Surface Finishing Manufacturers, Exporters

â— Fully automatic polishing machine for metal surface finishing

â— Designed for continuous industrial polishing operations

â— Stable polishing quality compared with manual operation

â— Improves surface consistency and product appearance

â— Suitable for mass production environments

Send Inquiry

Product Description

Finished Samples

Product Introduction

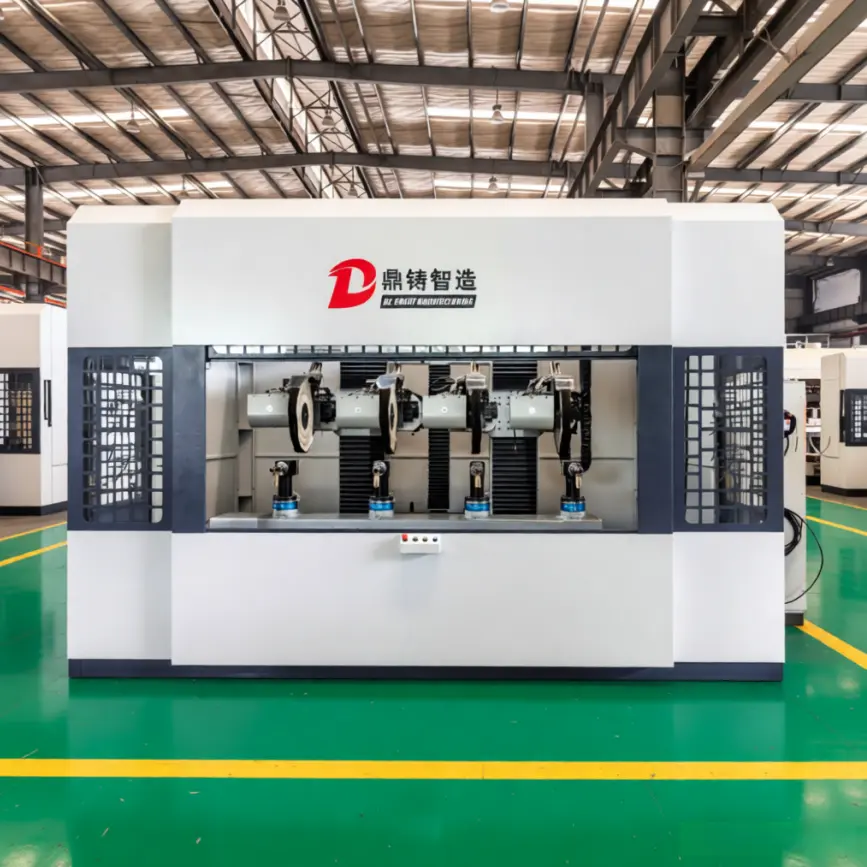

The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.
With Italy advanced PROMAX control system for high precision of control and high stability of move technology, stable process, high control accuracy.
Software: Programmable, with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.
Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction.
Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation.
Solid polishing wax, to set up the wax spraying cycle time, frequency. Select fixed wax and liquid wax according to product features.
Full digital control: Storage of 50 polishing program parameters which can be saved and adjusted at any time (either 500 lines 50 polishing programs, or 200 lines 125 polishing programs).
CN/EN language display on Touch Panel. To set all parameters for an easy operation; fault codes display and alarm pages for quick trouble shooting and repair.
Warning feeding wax.
Fixture wear-resistant sleeve to ensure the normal use cycle of more than 6 months.

Applications

Faucets
Automobile spare parts
Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
Automotive components: bumpers, supports, bars, wheel rims

Bath mixer polishing

Brass castings polishing

Door handle polishing

Faucet finishing

Faucet polishing

Motorcycle bar polishing

Motorcycle handlebars polishing

Water tap polishing

Machine Layout

Bent tube fixture

Bent tube layout

Bent tube configuration

Faucet polishing machine

Finishing Machine

Polishing machine

Technical Parameters

Code	Items	Parameters
1	Dimensions (LWH)	4000 * 3400 * 3000 mm
2	Machine Power	35 kW
3	Rated Voltage	380 V
4	Max. Diameter of polishing wheel	600 mm
5	Min. Diameter of polishing wheel	400 mm
6	X-Axis travel (mm)	1000
7	Y-Axis travel (mm)	900
8	Z-Axis travel (mm)	700
9	U-Axis travel (degree)	±90°
10	V-Axis travel (degree)	±360°
11	W-Axis travel (degree)	±720°
12	Program	Either 500 lines 50 polishing programs, or 200 lines 125 polishing programs.
13	Polishing Wax	Solid Compound or Liquid

Warranty and After-Sales Service

Code	Items	Details
1	Machine warranty	12 months
2	Service response time	Within 24 hours
3	Installation and Commissioning Fees at End User Site	- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation

Notes

Random attached 1set fixture, buffs, and polishing wax.
Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
Delivery time: 90 days after contract is confirmed.

Production Process & Facility Videos

Workshop Environment

Factory Facility

Production Workshop

Assembly Area

Technical Team

Global Technical Service

Professional Team

Technical Support

Core Technical Engineers

Application Cases

Faucet Polishing Project

Faucet Manufacturing Site

Casting Workshop

Machining Production Line

Automated Polishing Line

Sand Core Production

Exhibitions

KBC Fair

ISH Frankfurt Fair

ISH Booth Overview

KBC Booth Display

KBC Shanghai

Exhibition Interaction

Exhibition Event

Overseas Collaboration

Certificates

CE Certificate

Quality Certificate

Technical Patent

Management Certificate

Standardization Certificate

Environmental Certificate

Design Patent

System Certificate

Packing & Delivery

Packing Process 1

Packing Process 2

Wooden Case Packaging

Heavy Duty Packing

Container Loading 1

Container Loading 2

Export Delivery 1

Export Delivery 2

Secure Logistics Handling

Frequently Asked Questions (FAQ)

How many axes does the bent tube polishing machine support?

The machine is equipped with 6 NC axes, allowing high-precision multi-directional control and finishing the polishing and buffing of up to 4 workpieces simultaneously.

What control system does the polishing machine use?

It utilizes the advanced Italian PROMAX control system, providing high precision, movement stability, and a highly stable process technology.

How does the system handle polishing wheel wear?

The system features intelligent polishing pressure and wear compensation. When the cloth wheel wears out and the torque decreases, the system automatically compensates in all directions and increases speed to maintain constant linear speed.

How many polishing programs can be saved in the system?

It features full digital control capable of storing up to 50 polishing programs (500 lines each) or 125 programs (200 lines each), which can be adjusted and loaded easily through the touch panel.

What are the payment and delivery terms?

Our standard payment terms require a 50% TT deposit after contract signing, and the remaining 50% TT payment before delivery. The standard delivery time is 90 days after contract confirmation.

What is the warranty and after-sales service response policy?

We offer a 12-month machine warranty with a service response time within 24 hours to ensure your production processes run smoothly with minimal downtime.
