China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
1 / 5
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service
China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service

China Automatic Robot Polishing System for High Precision Metal Finishing Supplier, Service

● High-efficiency robotic polishing solution for automotive components, improves surface consistency and automation level.

● Multiple polishing programs can be stored

● High positioning accuracy

● Customizable fixtures and tooling

● Compatible with different polishing wheels

● Safety enclosure and dust collection interface

Send Inquiry

Product Description

📹 FINISHED SAMPLES
💡 PRODUCT INTRODUCTION

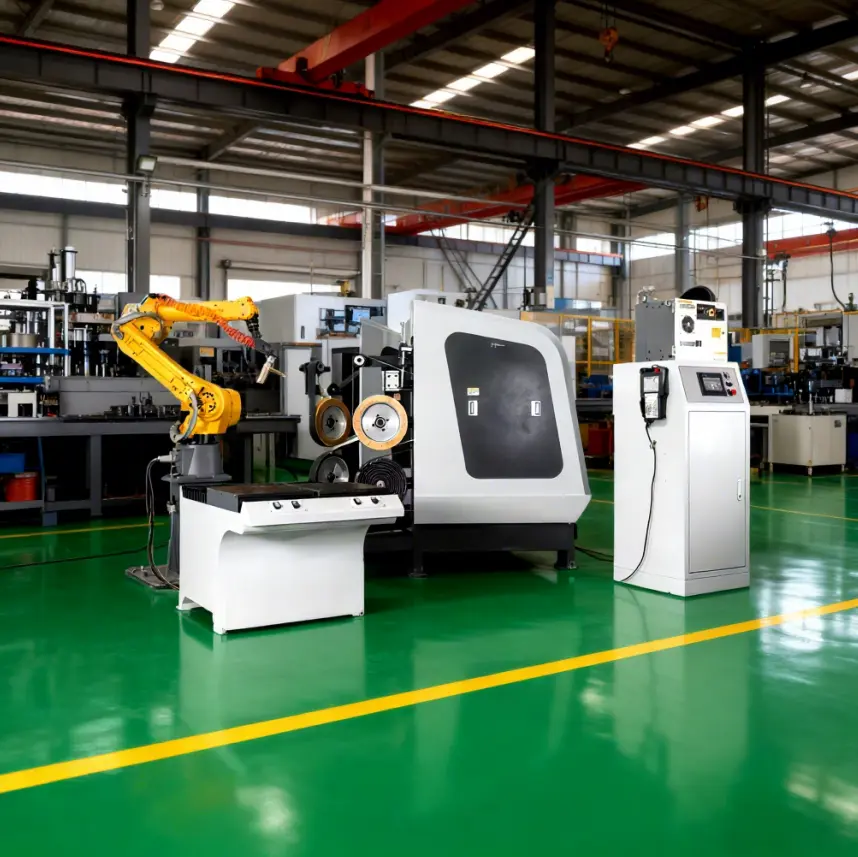

  • The system is used to polish different, round air tanks with already mounted attachments.
  • Consists of an input station with rotary table, two component shelves, a robot, and two polishing stations.
  • Equipped with a Fanuc robot featuring a force sensor and rotating drive for precision component handling.
  • Utilizes a two-stage process: coarse pre-polishing followed by fine polishing with specialized brushes.
  • Full enclosure with safety gates and security locks for maximum operator protection.
  • Advanced safety sensors and monitoring technology ensuring full CE conformity.
🛠️ APPLICATIONS
  • Faucets
  • Automobile spare parts
  • Locks and door handles
  • Automotive components (bumpers, rims)
Application 1
Application 2
Application 3
Application 4
Application 5
Application 6

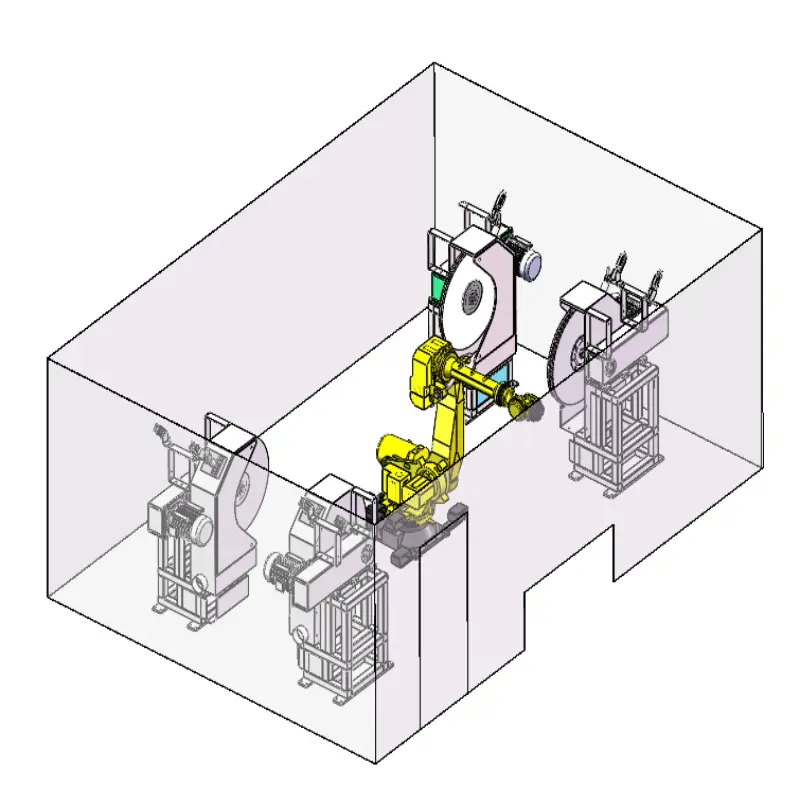

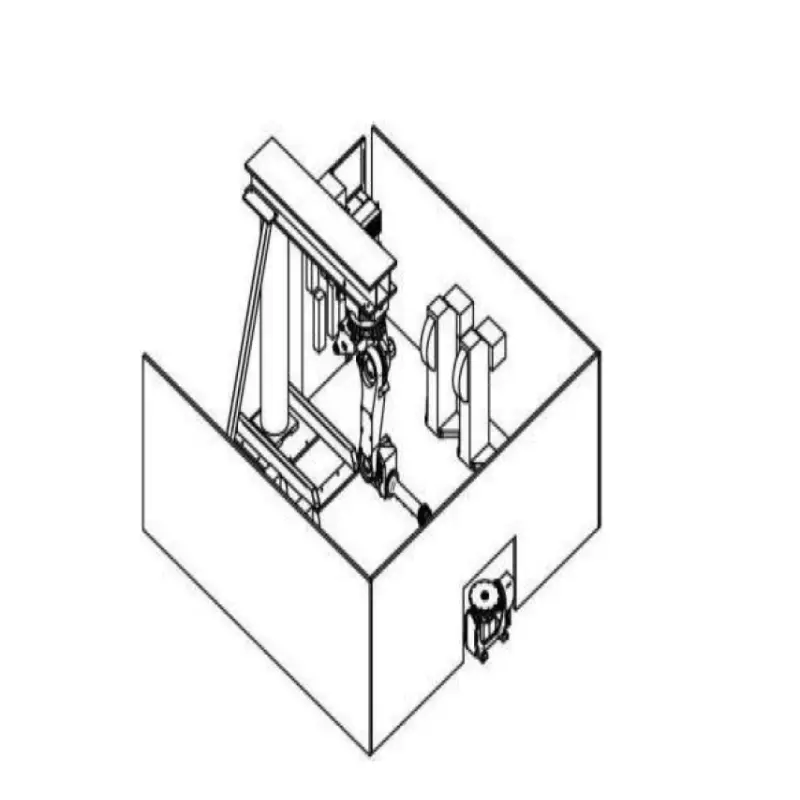

📐 MACHINE LAYOUT
Layout 1
Layout 2
Layout 3
📊 TECHNICAL PARAMETERS
No. Component / Feature Specifications
1Robot CellFANUC M20iD/35
2Sand Belt Machine1421*1625*2385mm
3Cloth Wheel Polishing Machine1000*1500*2200mm
4Feeding TableDouble-layers (Tray: 400*500*15mm)
5Max Power (Sand Belt)16 KW
6Max Power (Polishing)17.5 KW
7Voltage380V
8Sand Belt Spec4000MM / 2500MM
9Grinding Linear Speed29 M/S
10Polishing Linear Speed45 M/S
11Induction Motor3KW-4P (1440r/min)
🛡️ WARRANTY AND AFTER-SALES SERVICE
Code Items Details
1Machine Warranty12 Months
2Service Response TimeWithin 24 Hours
3Site InstallationFirst 10 days included; USD 200/day per person after
📝 PRODUCTION NOTES

1. Includes 1 set of random fixtures, buffs, and polishing wax.

2. Payment: 50% TT deposit; 50% TT before delivery.

3. Standard Lead Time: 90 days after contract confirmation.

🏭 FACILITY SHOWCASE
Workshop 1
Workshop 2
Workshop 3
Case 1
Case 2
Case 3
📜 CERTIFICATES & PACKING
Cert 1
Cert 2
Cert 3
Delivery 1
Delivery 2
Delivery 3
❓ FREQUENTLY ASKED QUESTIONS
What materials and products can this system handle?
The system is ideal for round air tanks, faucets, automobile parts, locks, door handles, and various aluminum or zinc alloy components.
Which robot brand is used in the polishing cell?
We utilize high-precision FANUC robots, specifically the M20iD/35 model, equipped with force sensors for optimal surface finishing.
What safety standards does the equipment meet?
The system is fully CE-certified, featuring enclosed work areas, safety gates with security locks, and specialized sensors to monitor the workspace.
What is the warranty and technical support response time?
We provide a 12-month machine warranty and guarantee a service response within 24 hours for any technical inquiries.
What are the typical lead times and payment terms?
Delivery takes approximately 90 days after contract confirmation. Payment terms are a 50% deposit via TT, with the remaining 50% due before delivery.
Is on-site installation provided?
Yes, we provide installation and commissioning. The first 10 days at the end-user site are included in the standard package.
