Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service
Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service
Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service
1 / 3
Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service
Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service
Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service

Wholesale Fully Automatic CNC Polishing Machine for Metal Surface High Precision Multi Axis Control Consistent Finish Supplier, Service

● The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.

● With Italy advanced PROMAX control system for high precision of control and high stability of move technology, stable process, high control accuracy.

Send Inquiry

Product Description

Finished Samples
Product Introduction
  • The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.
  • Equipped with advanced control system for high precision and stability of move technology.
  • Software: Programmable with a portable handheld device, featuring manual simulation mode and automatic operating models.
  • Polishing pressure and wear compensation: Automatically detects torque changes to compensate for cloth wheel wear in all directions.
  • Linear speed compensation: Automatically adjusts speed as the outer diameter of the cloth wheel reduces.
  • Waxing system: Digital control for solid or liquid wax spraying cycle, frequency, and timing.
  • Full digital control: Storage of up to 50 polishing programs (expandable up to 125 programs).
  • Touch Panel: Bilingual (CN/EN) display with fault codes and alarm pages for rapid troubleshooting.
  • Equipped with fixture wear-resistant sleeves ensuring a normal cycle of more than 6 months.
Applications
1. Faucets and sanitary ware
2. Automobile spare parts
3. Locks, door handles, Zamak handles, and hinges
4. Automotive components: bumpers, supports, bars, and wheel rims.
Bath mixer polishing
Brass castings polishing
Door handle polishing
Faucet finishing
Faucet polishing
Motorcycke bar polishing

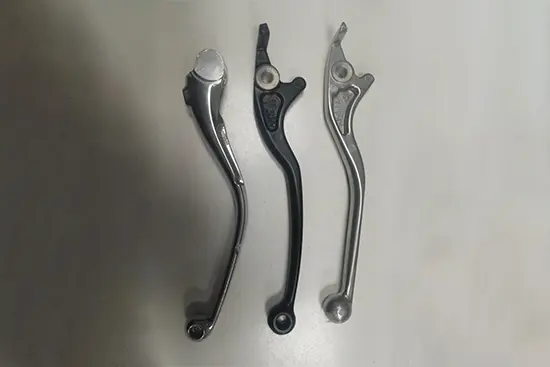

Motorcycle handlebars polishing
Water tap polishing
Machine Layout
Layout 1
Layout 2
Layout 3
Machine 1
Machine 2
Machine 3
Technical Parameters
Code Items Parameters
1Dimensions (L*W*H)4000 * 3400 * 3000 mm
2Machine Power35 kW
3Rated Voltage380 V
4Max. Diameter of polishing wheel600 mm
5Min. Diameter of polishing wheel400 mm
6X-Axis travel1000 mm
7Y-Axis travel900 mm
8Z-Axis travel700 mm
9U-Axis travel±90°
10V-Axis travel±360°
11W-Axis travel±720°
12Program50 - 125 programs
13Polishing WaxSolid Compound or Liquid
Warranty and After-Sales Service
Code Items Details
1Machine warranty12 months
2Service response timeWithin 24 hours
3InstallationGlobal support available for commissioning and training
Workshop & Team
Factory
Workshop
Team
Packing & Delivery
Packing 1
Packing 2
Packing 3
Frequently Asked Questions
How many axes does this polishing machine operate on?
The machine is equipped with 6 NC axes, allowing for complex multi-directional polishing movements and high-precision control.
Can the machine handle different types of metal alloys?
Yes, it is ideal for polishing various materials including Brass, Zamak, Aluminum handles, and stainless steel automotive components.
What happens when the polishing cloth wheel starts to wear out?
The system features automatic wear compensation. It detects torque changes and adjusts the machine's position and linear speed automatically to maintain consistent polishing quality.
Is the software easy for operators to program?
Absolutely. It includes a portable handheld device with a manual mode to simulate workmanship. Operators can record tracks and save them as automatic programs.
What is the typical lead time and warranty?
The standard delivery time is approximately 90 days. We provide a 12-month machine warranty with a technical response time within 24 hours.
Does the machine support both liquid and solid wax?
Yes, the digital control system allows you to set up wax spraying cycles for either solid compounds or liquid wax depending on the product requirements.
