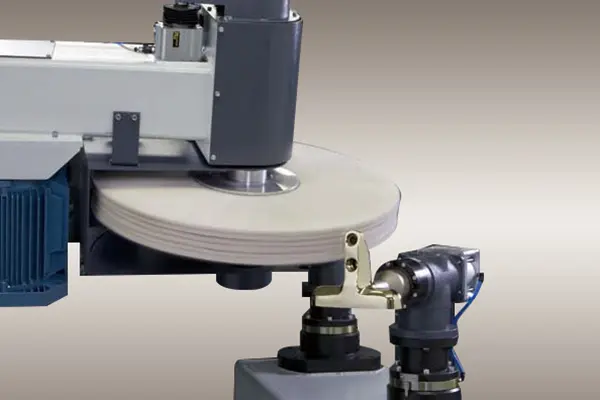

China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
1 / 4
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service
China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service

China Automatic Metal Buffing Machine Achieves Mirror Effect Surface Polishing machine Exporter, Service

● The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.

● With Italy advanced PROMAX control system for high precision of control and high stability of move technology, stable process, high control accuracy.

Send Inquiry

Product Description

Finished Samples

Product Introduction

1
The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.
2
Italy advanced PROMAX control system for high precision of control and high stability.
3
Software: Programmable with portable handed device; contains manual and automatic modes.
4
Polishing pressure and wear compensation: Automatic torque detection and compensation.
5
Linear speed compensation: Automatically adjusts speed as cloth wheel diameter reduces.
6
Digital control: Storage for up to 50-125 polishing programs.
7
Multilingual Touch Panel: EN/CN display with fault code alarms for troubleshooting.

Applications

  • Faucets and sanitary hardware
  • Automobile spare parts (bumpers, rims, bars)
  • Locks, door handles, and hinges (Zamak, Aluminum)
  • Motorcycle components
Bath mixer polishing
Brass castings polishing
Door handle polishing
Faucet finishing
Faucet polishing
Motorcycke bar polishing

Machine Layout

Machine diagram
Machine structure
Machine view
Faucet polishing machine
Finishing Machine
Polishing machine

Technical Parameters

Code Items Parameters
1Dimensions (L*W*H)4000 * 3400 * 3000 mm
2Machine Power35 kW
3Rated Voltage380 V
4Max. Polishing Wheel Dia.600 mm
5X / Y / Z Axis Travel1000 / 900 / 700 mm
6U / V / W Axis Travel±90° / ±360° / ±720°
7Polishing WaxSolid Compound or Liquid

Warranty & Service

Item Details Response
Machine Warranty 12 Months -
Service Response Within 24 Hours Global Support

Professional Manufacturing

Our facility specializes in intelligent manufacturing solutions, focusing on low-pressure die casting, grinding, and automated polishing systems. Serving over 30 countries, we provide robotic cell solutions for top brands globally, ensuring safe, green, and smart production through advanced multi-axis algorithms.

Factory Workshop
Production Line
Precision Manufacturing

Certificates & Exhibition

Certificate
Exhibition
CE Certified

Packing & Delivery

Packing 1
Packing 2
Packing 3

Frequently Asked Questions

Q: How many axes does the polishing machine have? A: The machine is equipped with 6 NC axes, providing high precision and flexibility for complex shapes.
Q: What control system does the equipment use? A: It utilizes the advanced Italy PROMAX control system, known for its stability and high-accuracy movement technology.
Q: Can the machine compensate for polishing wheel wear? A: Yes, the system automatically detects torque changes as the wheel wears and applies compensation in all directions.
Q: What is the production capacity per cycle? A: The machine can finish the polishing and buffing of 4 work pieces simultaneously in one cycle.
Q: What types of materials and products can be processed? A: It is ideal for faucets, automobile parts, door handles, and motorcycle components made of brass, aluminum, or zamak.
Q: What is the standard warranty period? A: We provide a 12-month machine warranty with a service response time within 24 hours.
