China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
1 / 4
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters
China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters

China Industrial Fully Automatic Polishing Equipment for Metal Processing Supplier, Exporters

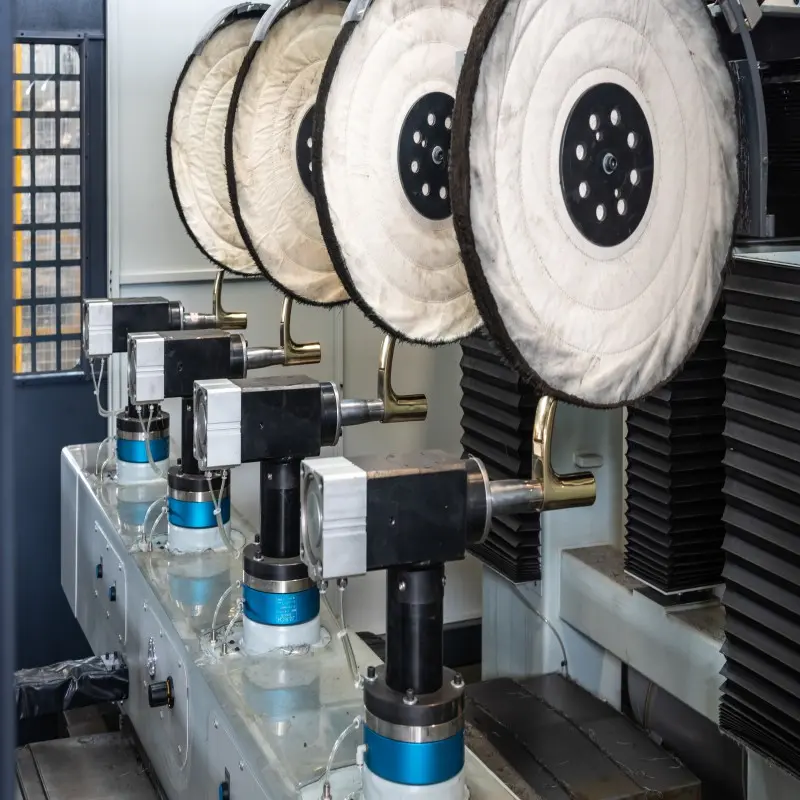

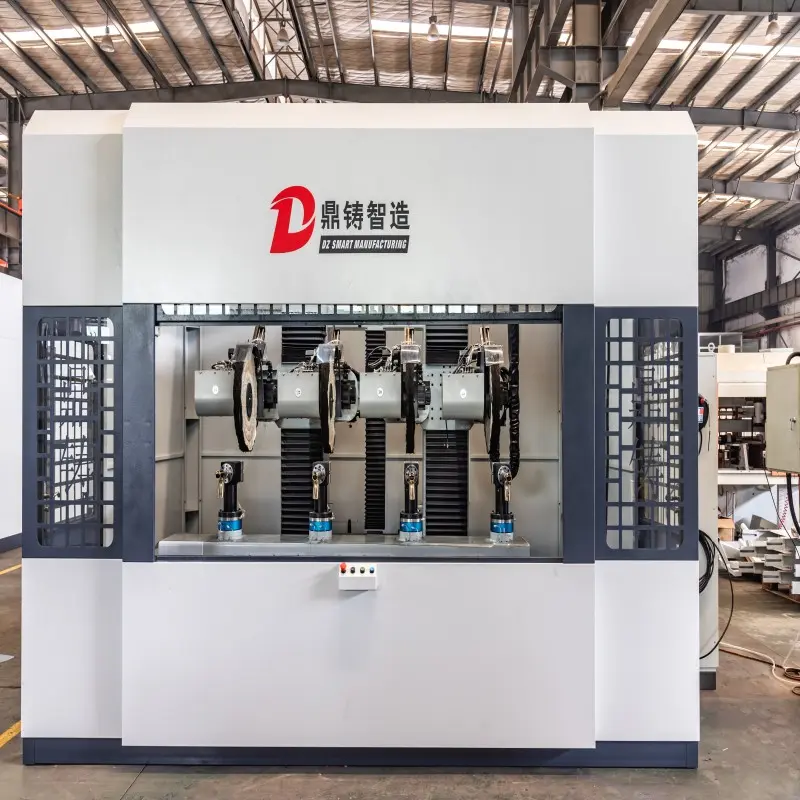

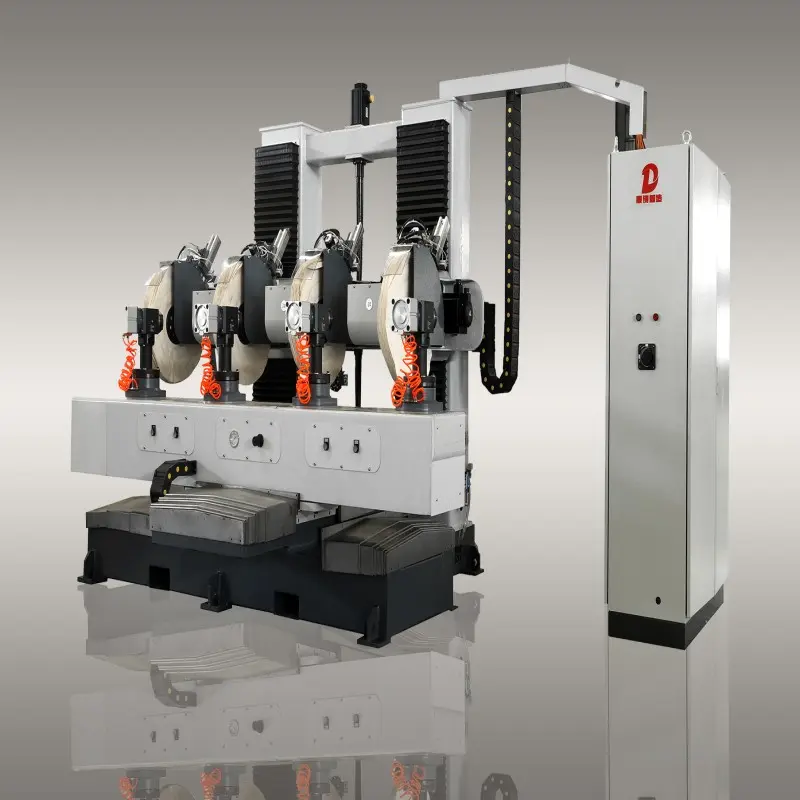

● The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.

● With Italy advanced PROMAX control system for high precision of control and high stability of move technology, stable process, high control accuracy.

Send Inquiry

Product Description

✓

Finished Samples

⚙

Product Introduction

●
The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.
●
Equipped with advanced control system for high precision and stability of move technology and stable process.
●
Software: Programmable with portable handheld device; includes manual mode to simulate workmanship and automatic mode with pre-set parameters.
●
Polishing pressure and wear compensation: Automatically detects torque reduction as wheels wear and adjusts in all directions.
●
Linear speed compensation: System automatically increases speed as the cloth wheel diameter reduces.
●
Full digital control: Storage for up to 50 polishing programs (500 lines) or 125 programs (200 lines).
●

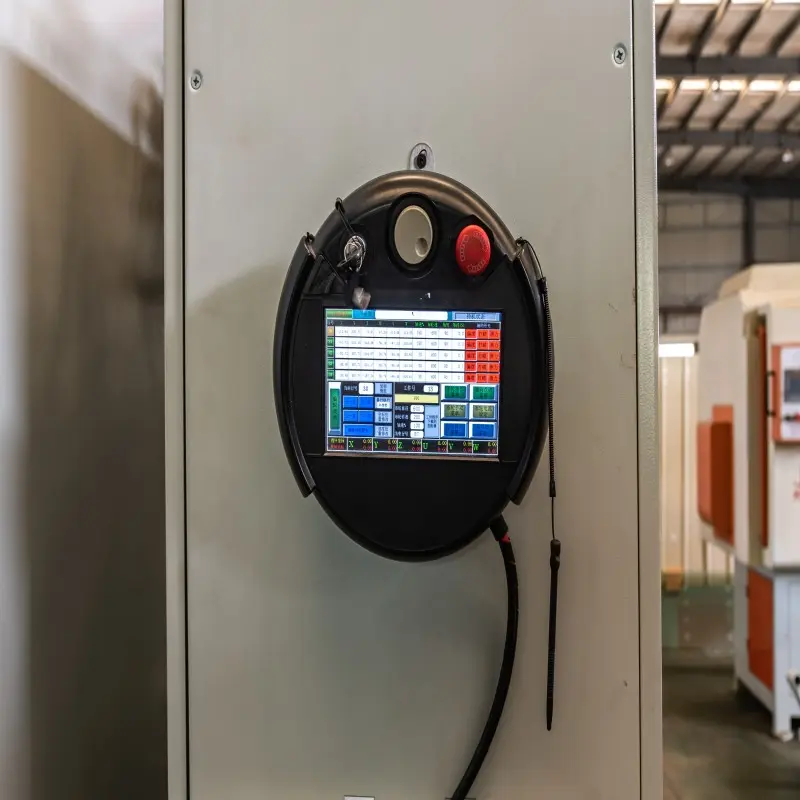

Multilingual display: Touch panel shows parameters, fault codes, and alarm pages for quick troubleshooting.
⊕

Applications

Targeted for high-precision finishing in various sectors:

  • Faucets and sanitary ware
  • Automobile spare parts and rims
  • Locks, door handles, and hinges
  • Automotive components: bumpers and supports
Bath mixer polishing
Brass castings polishing
Door handle polishing
Faucet finishing
Faucet polishing
Motorcycke bar polishing
▤

Machine Layout

Machine Layout 1
Machine Layout 2
Machine Layout 3
Faucet polishing machine
Finishing Machine
Polishing machine
📊

Technical Parameters

Code Items Parameters
1Dimensions (L*W*H)4000 * 3400 * 3000 mm
2Machine Power35 kW
3Rated Voltage380 V
4Max. Diameter of polishing wheel600 mm
5Min. Diameter of polishing wheel400 mm
6X/Y/Z-Axis travel (mm)1000 / 900 / 700
7U/V/W-Axis travel (degree)±90° / ±360° / ±720°
8Program CapacityUp to 125 programs
9Polishing WaxSolid Compound or Liquid
🛡

Warranty and Service

Code Items Details
1Machine warranty12 months
2Service response timeWithin 24 hours
3Installation SupportOn-site commissioning available
🏭

Production Environment & Cases

Factory workshop
Polishing workshop
Machining workshop
📜

Certificates & Global Presence

Certificate
Exhibition
Exhibition Shanghai
?

Frequently Asked Questions

How many workpieces can the machine process simultaneously?
The machine is designed to finish the polishing and buffing of up to 4 workpieces in a single operation cycle.
Does the machine automatically adjust for polishing wheel wear?
Yes, the system features a wear compensation control performance that detects torque changes and automatically adjusts the compensation in all directions.
What types of materials and products can be polished?
It is ideal for faucets, automobile spare parts, door handles, zinc alloy handles, hinges, and various aluminum or brass components.
Can the machine store different polishing programs?
The full digital control system allows for the storage of up to 50 polishing programs (500 lines) or 125 programs (200 lines) for easy retrieval.
What is the standard delivery time for this equipment?
The typical delivery time is 90 days after the contract is confirmed and the deposit is received.
What kind of after-sales service do you provide?
We offer a 12-month warranty with a 24-hour service response time. Global on-site installation and commissioning are also available.
