Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine designed for high-efficiency casting industry operations in metal casting production.
| Code | Items | Parameters |
|---|---|---|
| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 8 | Voltage | 380V |
| 9 | Sand Belt specification | 4000MM/2500MM |
| 10 | Max. Liner speed of grinding | 29M/S |
| 11 | Max. Liner speed of polishing | 45M/S |
| 12 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 13 | Air Pressure | 0.4~0.7Mpa |
| 14 | Machine size | 2400*3800*2700mm |
| 15 | Total Weight | 4000KG |
| 16 | Air cylinder | AirTAC |
| 17 | Bearing | NSK |
| 18 | HMI / PLC | Delta |
| Code | Items | Details |
|---|---|---|
| 1 | Machine warranty | 12 months |
| 2 | Service response time | Within 24 hours |
| 3 | Installation & Commissioning | Within 10 days included; Over 10 days: USD 200/day per person |
This equipment is designed for metal casting production, including brass faucets, aluminum components, and zinc alloy (Zamak) parts such as handles and hinges.

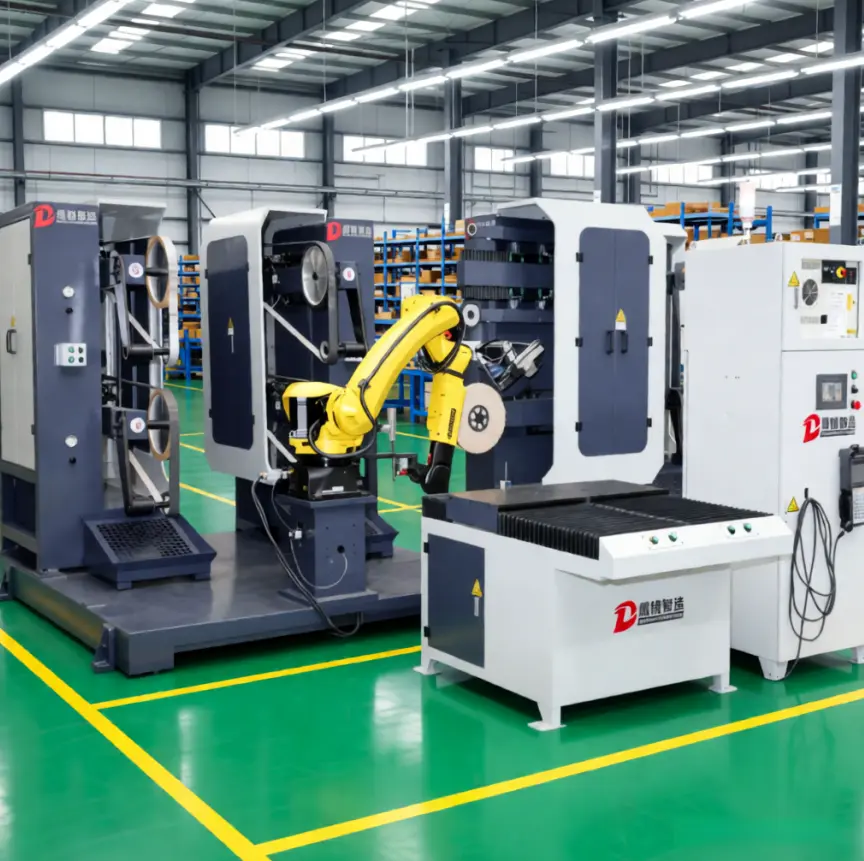

The standard configuration features a high-precision FANUC M20iD/35 robot cell for optimized grinding and deburring movements.
We provide a 12-month comprehensive warranty on the machine, with a service response time within 24 hours.
Yes, the system includes a double-layer feeding table and can be equipped with customized fixtures (standard 400mm) to accommodate various workpiece sizes.
The machine operates on a 380V voltage and requires an air pressure range of 0.4 to 0.7 Mpa. The total installation weight is approximately 4000KG.
Yes, each machine is shipped with one set of fixtures, buffs, and polishing wax as standard attachments to facilitate immediate startup.
