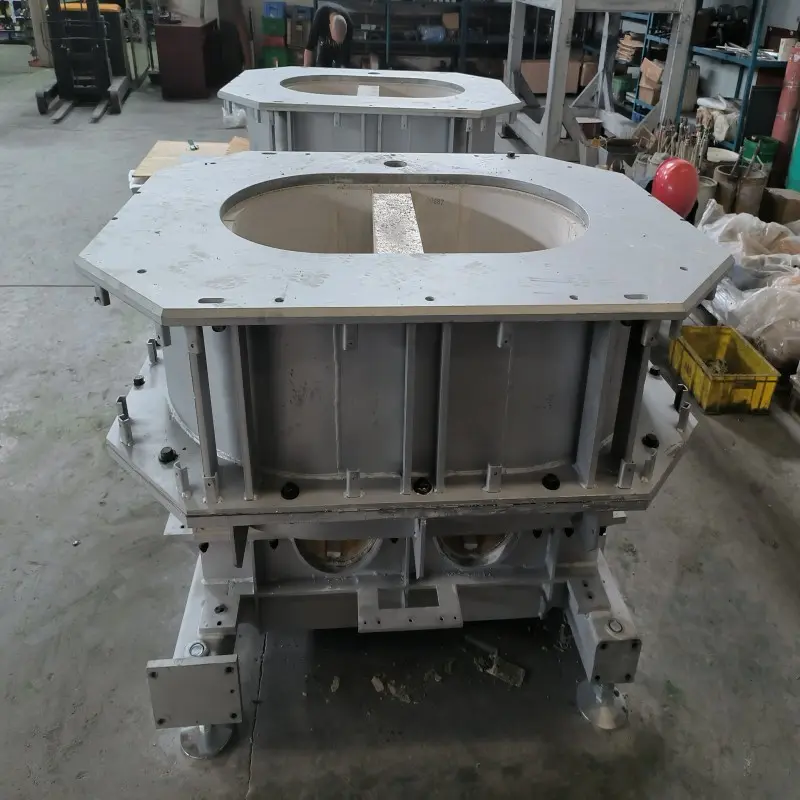

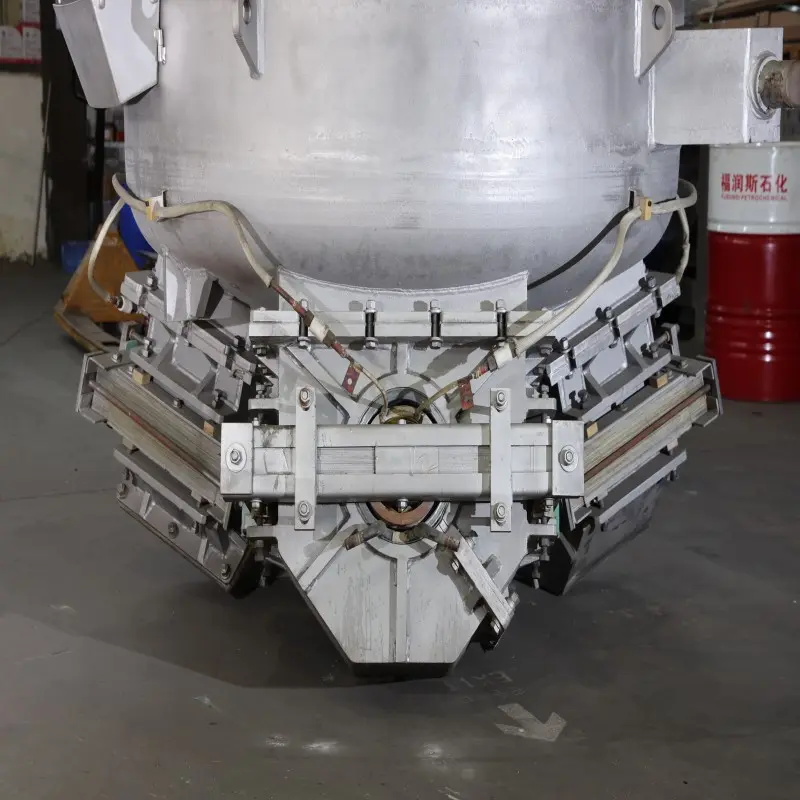

China Industrial Furnace For Casting System Manufacturers, Service

The electrical components are branded products from CHIANT. The electrical enclosure designed and manufactured with a 3-phase balance device, and the transformer and the reactor are dry self-cooling.
Silicon steel sheet is imported from Japan, with a tendency of z10 and a thickness of 0.35mm. Effectively improve the electric heating efficiency.
Â The furnace raw material is with stress relief pretreatment to ensure that no deform after being heated.
The furnace adopts new technology, which effectively reduces the energy consumption and improves the quality of the ingot melting.

Send Inquiry

Product Description

Overview

Design concept: double - melting groove and double induction body structure
High uniformity of temperature for a better energy-saving and improve the electromagnetic stirring area.
Applications: copper, bronze, brass and other copper alloys' melting and thermal insulation.

Product Introduction

In low pressure casting process molten metal is filled directly from the holding or casting furnace into the die or sand mould from below, with low turbulence and with an absolutely controlled filled casting process.
Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.
This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a noticeably short die changing time.
Warning feeding wax.
Fixture wear-resistant sleeve to ensure the normal use cycle of more than 6 months.

Applications

Faucets
Automobile spare parts
Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
Automotive components: bumpers, supports, bars, wheel rims.

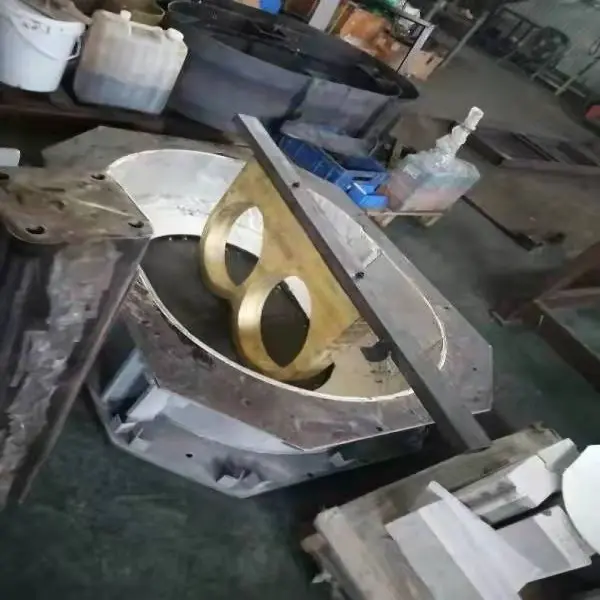

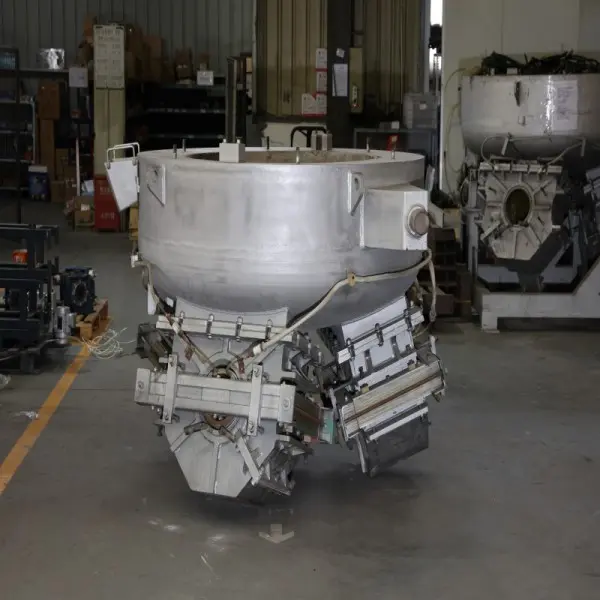

Medium frequency furnace for brass melting

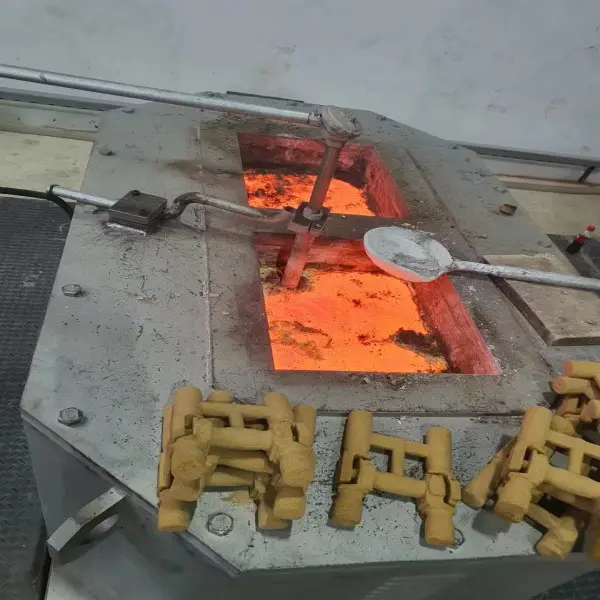

Industrial electric furnace for melting copper

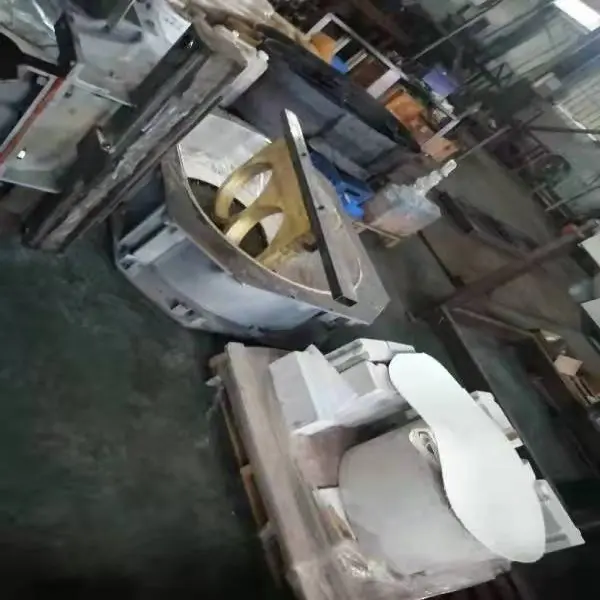

Copper melting furnace for brass faucet production

Machine Layout

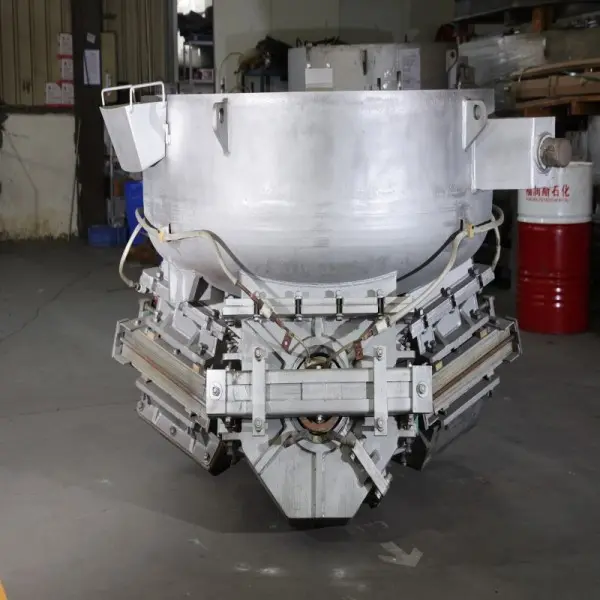

Industrial electric furnace for melting copper (11)

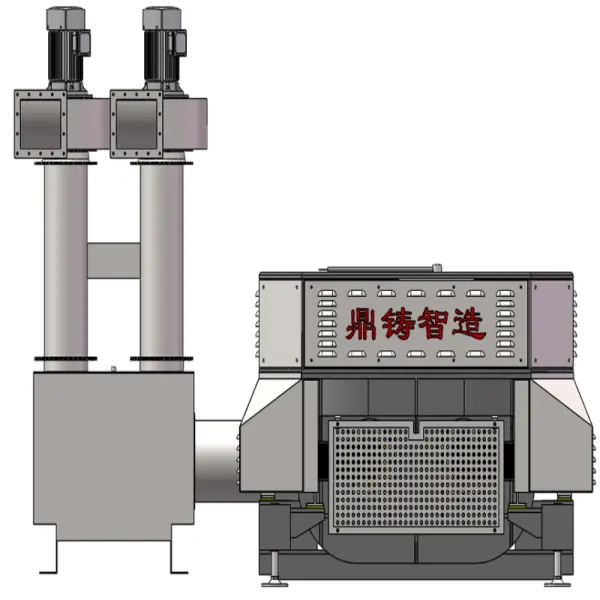

Electric melting furnace for brass water meter production

Induction melting furnace for copper in brass manufacturing

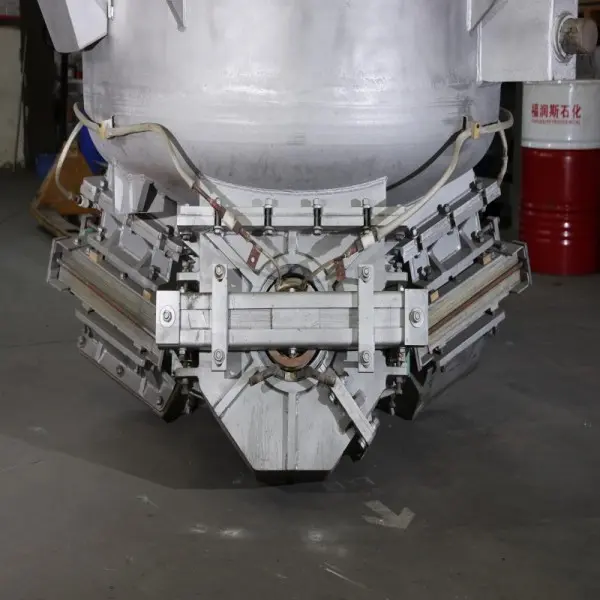

Industrial electric furnace for melting copper (4)

Technical Parameters

Code	Name	Unit	Data (125kw)
1	Capacity	KG	1050
2	Power	KW	125
3	Supply voltage and frequency	V	400V/50Hz
4	Apparent power (6 gears)	KVA	180
5	Compensation power	KVA	120
6	Copper melting rate	T/Hr	0.3
7	Exhaust capacity	m³/h	4000
8	Working Temperature	℃	1050
9	Power Factor	-	0.95 (before compensation) 0.9~1 (after compensation)
10	Exhaust pressure	Pa	400
11	Exhaust motor speed	r/m	1450r/m
12	Exhaust motor power	Kw	2.2

Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Installation and Commissioning Fees at End User Site	- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation	-

Notes

Random attached 1set fixture, buffs, and polishing wax.
Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
Delivery time: 90 days after contract is confirmed.

Our Office

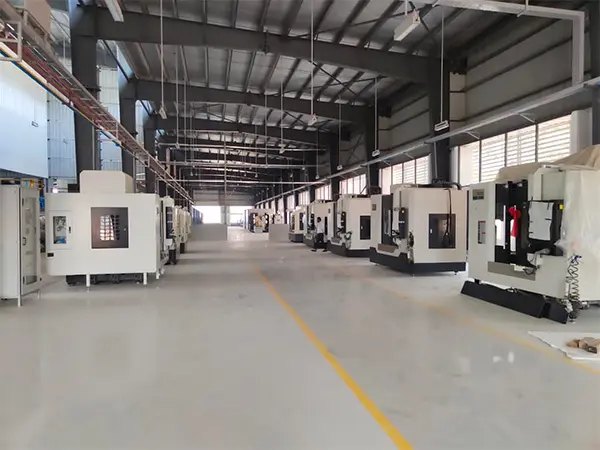

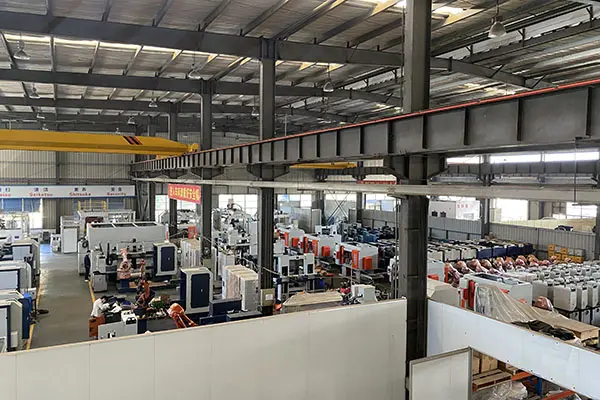

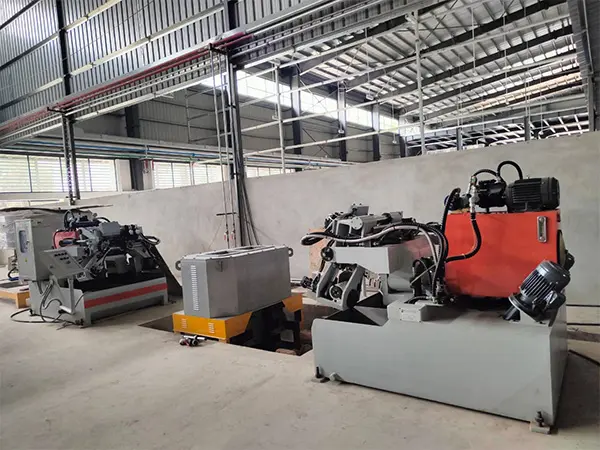

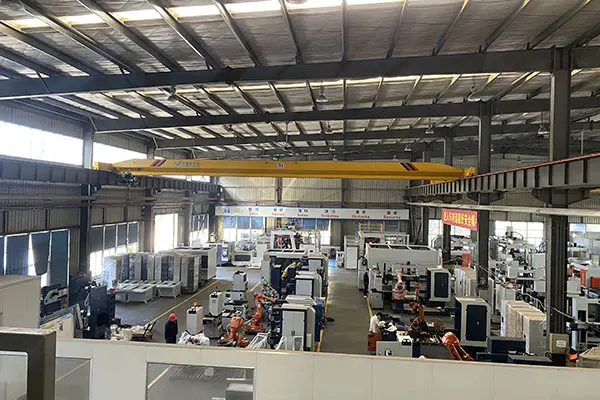

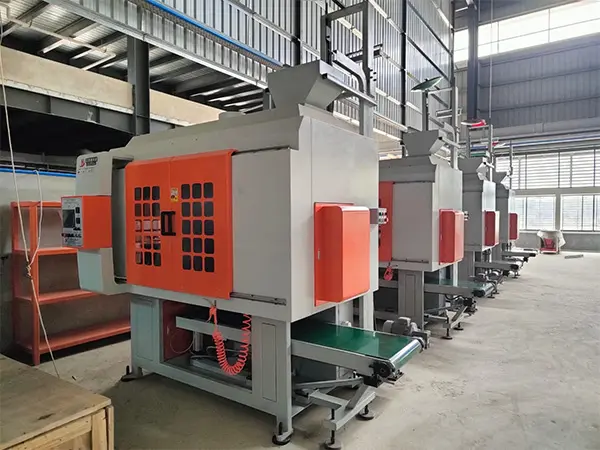

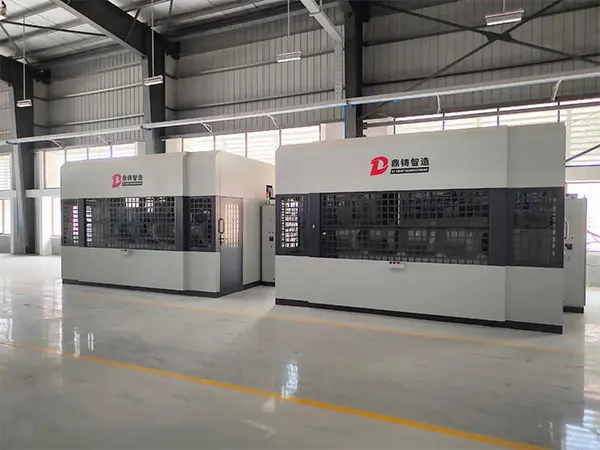

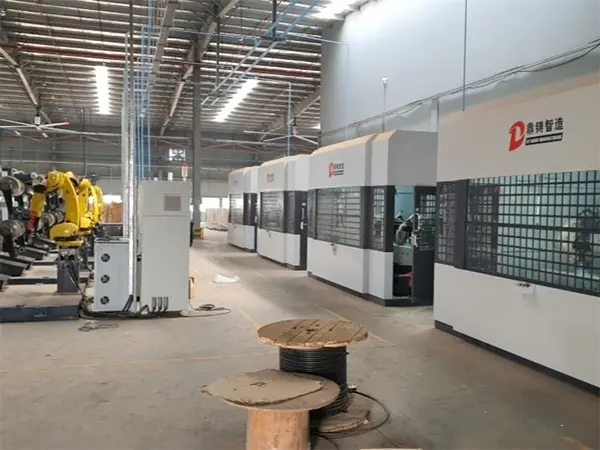

Our Workshop

Our Team

Our Cases

Exhibition

Certificate

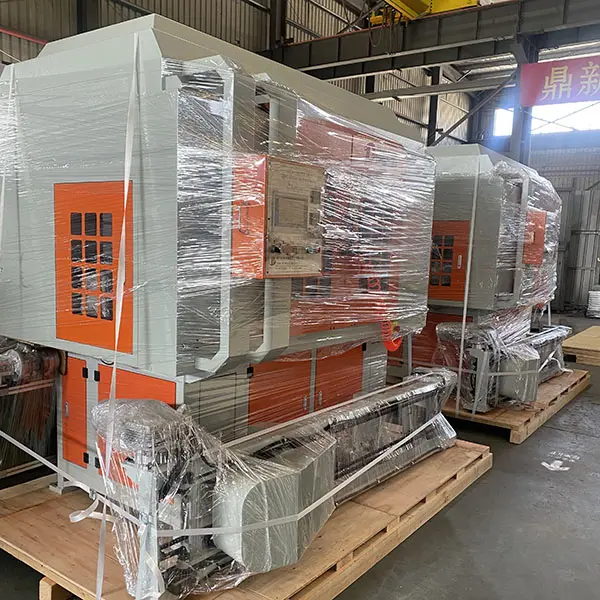

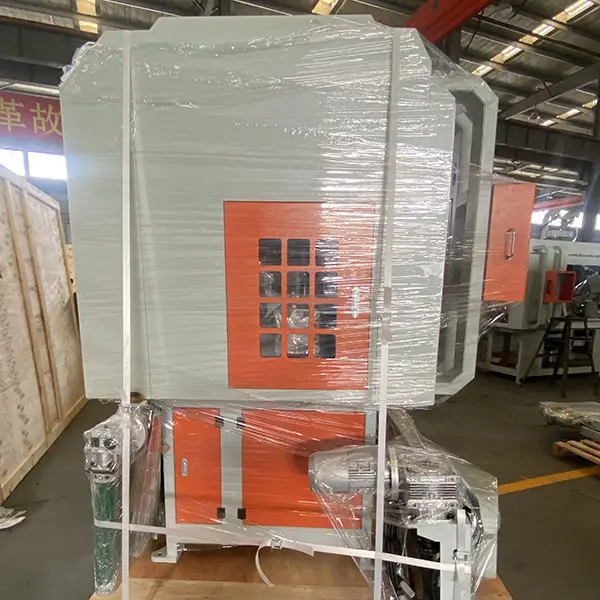

Packing & Delivery

Frequently Asked Questions

What are the primary applications of this low pressure die casting machine?

The machine is highly suitable for manufacturing high-quality sanitary fittings, faucets, water meters, valve bodies, automotive components (such as bumpers, supports, and wheel rims), locks, door hinges, and various aluminum or Zamak handles.

What are the key technical advantages of the melting furnace design?

It employs an advanced design concept featuring a double-melting groove and a double induction body structure. This configuration delivers high temperature uniformity, optimal electromagnetic stirring area, and superior energy efficiency.

How does the low pressure casting process improve product quality?

In this process, molten metal is filled directly from the holding or casting furnace into the mould from below. This ensures low turbulence and an absolutely controlled filling path, resulting in precise casting structures with extremely low defect rates.

What is the standard warranty period and service response protocol?

We offer a robust 12-month machine warranty on our equipment. In case of any technical queries or support requests, our service response protocol ensures a turnaround time within 24 hours.

What is the typical delivery schedule and payment structure?

The standard delivery time is 90 days after the contract has been officially confirmed. The standard payment terms are structured as a 50% TT deposit upon signing, followed by the remaining 50% TT payment due prior to delivery.

How long is the service life of critical machine wear-resistant parts?

The machine is engineered with heavy-duty wear-resistant sleeves for the fixtures, designed explicitly to ensure a stable and reliable operation cycle exceeding 6 months under normal working conditions.
