China Robotic Cell Grinding And Polishing Machine With Special whell ( 8 belts) Manufacturers, Exporter

 STANDARD CONFIGURATION

A.FANUC Intelligent robot(1set)

B.Robot Control Cabinet

C.Electric control System

D.Sand Belt Polishing Mchine (2sets)

E.Double layer feeding table

Product Description

🎬 Finished Samples
⚙️ Product Introduction

● Discharge Tray (customized according to the sample)

● Included full enclosed dust cover and control cabinet, charging system collected on one base with robotic. Adopting soundproof and fireproof material to eliminate dust pollution. It can be save area and easy for install, and avoid need to adjusted the program accuracy frequently case by the ground is uneven and loading system was not on same based with main machine.

Charging Table Features:

  • The charging tray uses mechanical positioning with high positioning accuracy to ensure consistency of loading and unloading.
  • The charging tray has an elastic floating function, which automatically eliminates torque increases caused by workpiece differences.
  • Gripping and discharging detection: Avoids empty clamping and multiple clamping caused by jaw jamming.
🛠️ Applications

Our solutions are ideal for high-precision processing of:

  • Faucets and plumbing hardware
  • Automobile spare parts

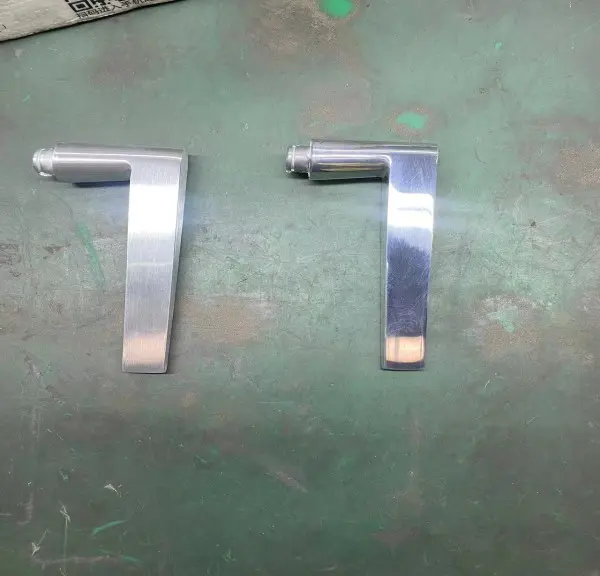

  • Locks and door handles (Zamak, Aluminum, etc.)

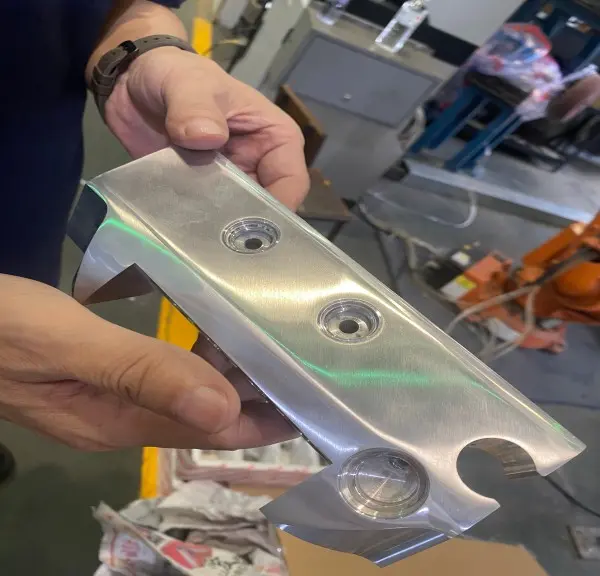

  • Automotive components: bumpers, supports, bars, wheel rims
APPLICATIONS
APPLICATIONS
APPLICATIONS
APPLICATIONS
APPLICATIONS
APPLICATIONS
📐 Machine Layout
robot grinder
robotics grinder
grinding robots
rock grinder
deburring machine
Grinding Machine
📊 Technical Parameters
Parameter Item Specification
Robot CellABB IRB 4600/60
Sand Belt Machine (Double Layer)1421*1625*2385mm
Double-layers Feeding TableCharging tray size 650*1000 mm
Machine Power20.5KW
Voltage380V
Sand Belt Specification3300 to 3700 mm
Max. Speed of Grinding29M/S
Three-phase Induction Motor3KW-4P (1440r/min)
Air Pressure0.4~0.7Mpa
Machine Size2400*4100*3000mm
Total Weight4000KG
🛡️ Warranty and After-Sales Service
Code Items Details Remarks
1Machine warranty12 months
2Service response timeWithin 24 hours
3Installation & CommissioningWithin 10 days includedOver 10 days: USD 200/day
🏢 Factory & Workshop
factory
workshop
facility
Polishing workshop
Machining workshop
Polishing
📜 Certificates
Certificate
Certificate
Certificate
📦 Packing & Delivery
Packing
Delivery
Shipping
Frequently Asked Questions
What materials can the robotic grinding system process?
The system is designed for high-precision grinding and polishing of materials such as brass (faucets), Zamak, aluminum alloys, and various steel components used in the automotive and hardware industries.
What brand of robot is integrated into the cell?
The standard configuration utilizes the ABB IRB 4600/60 robot, known for its high speed, precision, and reliability in industrial environments.
How long is the delivery time for a complete system?
The standard delivery time is 90 days after the contract is confirmed, allowing for high-quality assembly and testing.
What are the power and air pressure requirements?
The machine operates on a 380V voltage with a power consumption of approximately 20.5KW. It requires an air pressure range between 0.4 and 0.7Mpa for optimal performance.
Is on-site installation provided?
Yes, we provide installation and commissioning services. Up to 10 days of on-site service is typically included, with additional support available if required.
Does the system include dust control?
Yes, the system includes a fully enclosed dust cover and utilizes soundproof and fireproof materials to eliminate dust pollution and maintain a safe workspace.
