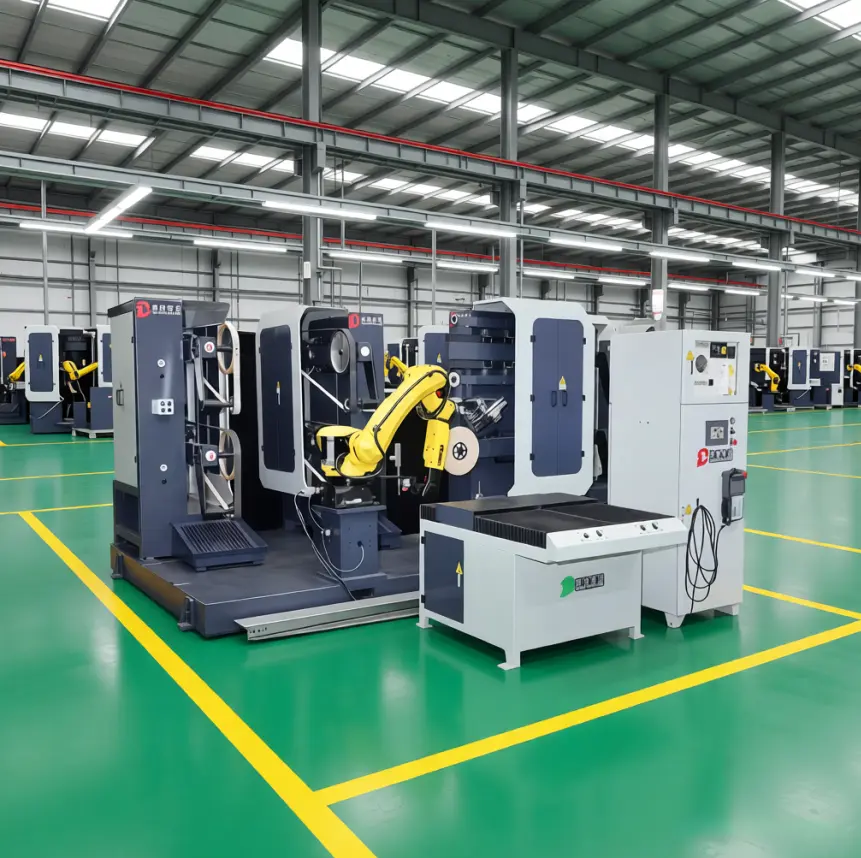

Wholesale Robotic Polishing Machine for Sanitary Ware Factory, Service

â— Significantly improves production efficiency for mass production

â— Supports continuous 24/7 operation

â— Customizable polishing paths for different product designs

â— Compatible with multiple polishing processes in one system

â— High precision motion control for consistent surface quality

Send Inquiry

Product Description

Video

Product Introduction

Industrial sand core shooting machine for metal casting production

Outstanding quality sand core shooting machine for the casting industry in metal casting production.

Applications

Faucets
Automobile spare parts
Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
Automotive components: bumpers, supports, bars, wheel rims

Machine Layout

Technical Parameters

Code	Items	Parameters
1	Robot Cell (FANUC)	M20iD/35
2	Sand Belt Machine	142116252385mm
3	Cloth wheel polishing machine	100015002200mm
4	Double-layers feeding table	Double-layers feeding table
5	Fixture	400 mm
6	Max. Power of sand belt machine	16 KW
7	Max. Power of cloth wheel polishing machine	17.5 KW
8	Machine base	-
9	Voltage	380V
10	Sand Belt specification	4000MM/2500MM
11	Max. Liner speed of grinding	29M/S
12	Max. Liner speed of polishing	45M/S
13	Three-phase induction motor	3KW-4P (1440r/min)
14	Air Pressure	0.4~0.7Mpa
15	Machine size	240038002700mm
16	Total Weight	4000KG
17	Air cylinder	AirTAC
18	Bearing	NSK
19	Open guide slide block	LSPB
20	Open linear guide	LSPB
21	Three-phase induction motor	Planet
22	HMI	Delta
23	PLC	Delta
24	Cloth wheels dimension	Dia. 600; The width can be customized.

Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Installation and Commissioning Fees at End User Site	• Within 10 days included • Over 10 days: USD 200 per day and per person plus travel costs and accommodation • Translator cost will be paid by end user, additional travel costs, meals, accommodation	-

Notes

1. Random attached 1set fixture, buffs, and polishing wax.

2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.

3. Delivery time: 90 days after contract is confirmed.

Our Company

Our company (est. 2016) is a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring.

With exports to 30+ countries (Turkey, India, Mexico, USA, Southeast Asia, etc.) and partnerships with top brands like Kohler and TOTO, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms.

50+ patents and a 60+ R&D team drive innovations in low-pressure casting and robotic automation. We deliver end-to-end solutions—from mold design (CAE simulation) to lean factory layouts—backed by 24/7 global support, localized service centers (India, Turkey, Egypt), and 48-hour on-site assistance.

CE-certified with strict material inspection and a 1-year warranty, we prioritize eco-friendly practices and operational excellence. Committed to "liberating workers' hands," we envision leading the future of intelligent automation, helping clients achieve productivity breakthroughs and sustainable growth.

Partner with us to transform your manufacturing with cutting-edge technology and world-class expertise.

Our Office

Our Workshop

Our Team

Our Cases

Exhibition

Certificate

Packing & Delivery

Frequently Asked Questions

What are the primary applications of this industrial sand core shooting machine?

The machine is widely used in metal casting production, specifically for producing faucets, automobile spare parts, locks, door handles, Zamak handles, door hinges, aluminum handles, and automotive components such as bumpers, supports, bars, and wheel rims.

What is the standard warranty and after-sales service policy?

The machinery comes with a comprehensive 12-month warranty. Technical support response time is guaranteed within 24 hours to ensure high operational efficiency and minimal downtime.

What major components and brands are used in your robotic cells?

The system integrates premium industry-leading components, including FANUC robotic cells (model M20iD/35), Delta PLC and HMI control systems, NSK bearings, and high-performance AirTAC air cylinders.

Can the specifications of the cloth wheels and fixtures be customized?

Yes. Although the standard diameter for the cloth wheels is 600mm, the width and corresponding fixtures can be fully customized based on your specific workpiece design and processing requirements.

What are the standard payment terms and delivery times?

Our standard terms are a 50% TT deposit upon contract execution, with the remaining 50% TT paid prior to delivery. The standard delivery timeframe is typically 90 days after contract confirmation.

Is on-site installation and commissioning support available?

Yes, we provide on-site installation and commissioning services. Up to 10 days of technical services at the end-user site are fully included in the standard terms. Support extending beyond 10 days is available under standard daily rates plus travel expenses.
