Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine for the casting industry in metal casting production
1. Faucets
2. Automobile spare parts
3. Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
4. Automotive components: bumpers, supports, bars, wheel rims.
| Code | Items | Parameters |
|---|---|---|

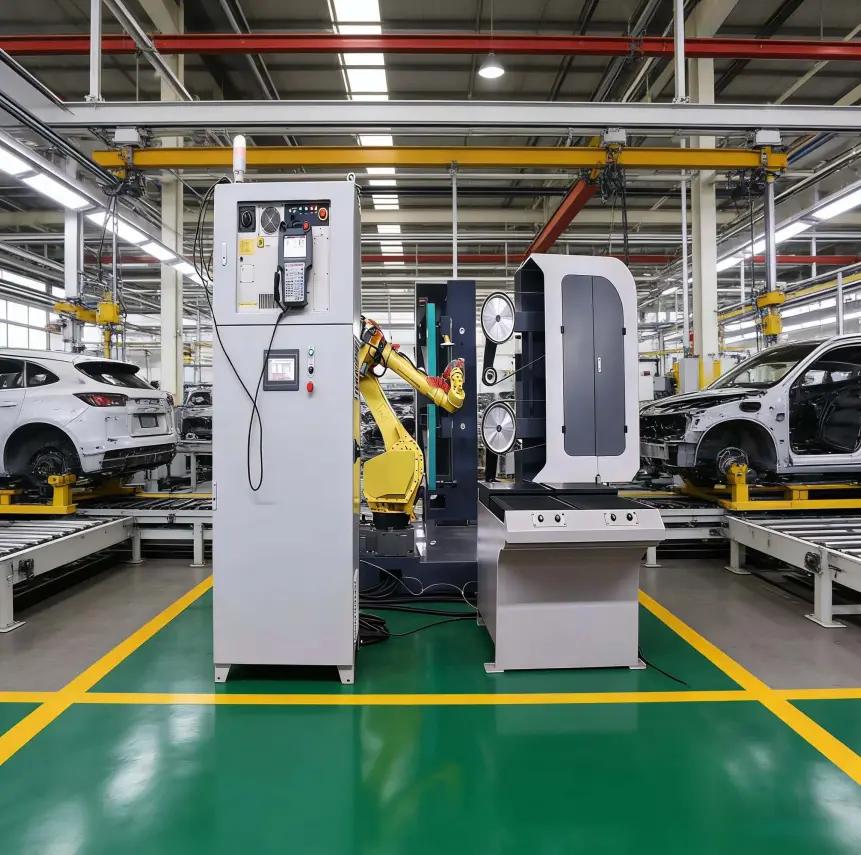

| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 8 | Machine base | - |
| 9 | Voltage | 380V |
| 10 | Sand Belt specification | 4000MM/2500MM |
| 11 | Max. Liner speed of grinding | 29M/S |
| 12 | Max. Liner speed of polishing | 45M/S |
| 13 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 17 | Air cylinder | AirTAC |
| 18 | Bearing | NSK |
| 19 | Open guide slide block | LSPB |
| 20 | Open linear guide | LSPB |
| 21 | Three-phase induction motor | Planet |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| 24 | Cloth wheels dimension | Dia. 600; The width can be customized |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | - |
| 2 | Service response time | Within 24 hours | - |
| 3 | Installation and Commissioning | - Within 10 days included - Over 10 days: USD 200 per day per person - Translator cost by user | Travel/Accommodation extra |
1. Random attached 1 set fixture, buffs, and polishing wax.
2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
3. Delivery time: 90 days after contract is confirmed.
We are a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring.
With exports to 30+ countries and partnerships with top global brands, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms.
50+ patents and a 60+ R&D team drive innovations in low-pressure casting and robotic automation. We deliver end-to-end solutions—from mold design to lean factory layouts—backed by global support and localized service centers.
