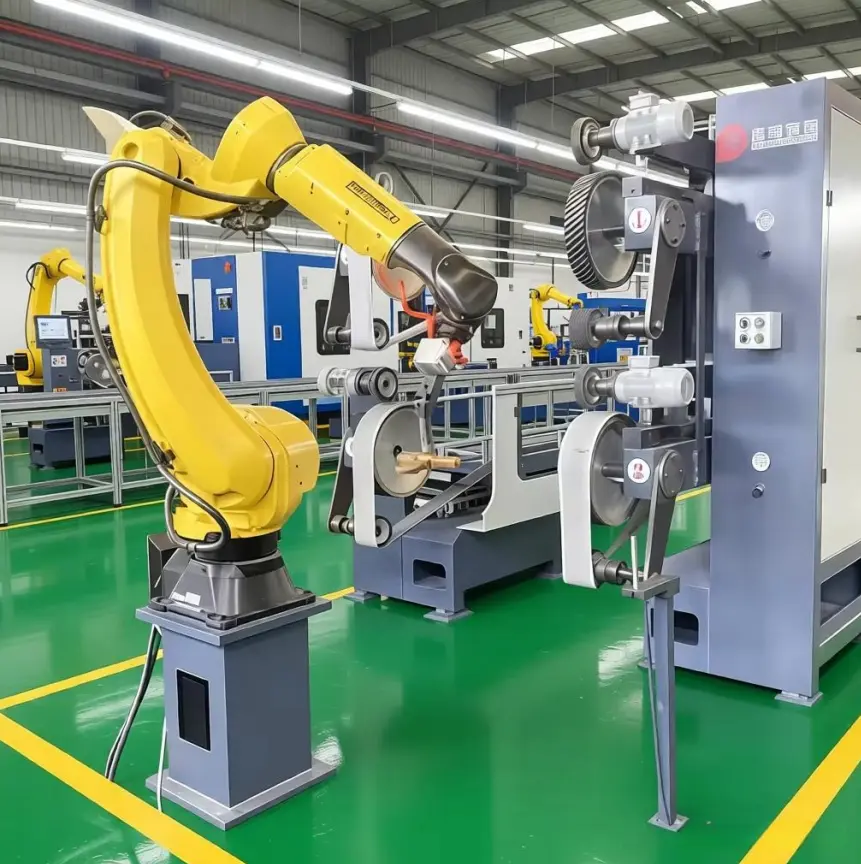

Wholesale Industrial Robotic Polishing System for Faucets Manufacturers, Factory

1 / 4

Wholesale Industrial Robotic Polishing System for Faucets Manufacturers, Factory

â— Fully automated robotic system for metal grinding and polishing operations

â— Improves surface consistency compared with automated polishing

â— Intelligent force control ensures stable and uniform finishing results

â— Suitable for complex shape metal parts and irregular surfaces

â— Reduces reliance on skilled manual labor

Send Inquiry

Product Description

Product Video

Product Introduction

Industrial sand core shooting machine for metal casting production

Outstanding quality sand core shooting machine for the casting industry in metal casting production.

Applications

Faucets
Automobile spare parts
Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
Automotive components: bumpers, supports, bars, wheel rims

Machine Layout

Technical Parameters

Code	Items	Parameters
1	Robot Cell (FANUC)	M20iD/35
2	Sand Belt Machine	142116252385mm
3	Cloth wheel polishing machine	100015002200mm
4	Double-layers feeding table	Double-layers feeding table
5	Fixture	400 mm
6	Max. Power of sand belt machine	16 KW
7	Max. Power of cloth wheel polishing machine	17.5 KW
8	Machine base	-
9	Voltage	380V
10	Sand Belt specification	4000MM/2500MM
11	Max. Liner speed of grinding	29M/S
12	Max. Liner speed of polishing	45M/S
13	Three-phase induction motor	3KW-4P (1440r/min)
14	Air Pressure	0.4~0.7Mpa
15	Machine size	240038002700mm
16	Total Weight	4000KG
17	Air cylinder	AirTAC
18	Bearing	NSK
19	Open guide slide block	LSPB
20	Open linear guide	LSPB
21	Three-phase induction motor	Planet
22	HMI	Delta
23	PLC	Delta
24	Cloth wheels dimension	Dia. 600; Width can be customized.

Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Installation and Commissioning Fees at End User Site	• Within 10 days included • Over 10 days: USD 200 per day and per person plus travel costs and accommodation • Translator cost will be paid by end user, additional travel costs, meals, accommodation	-

Important Notes

1. Random attached 1 set fixture, buffs, and polishing wax.

2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.

3. Delivery time: 90 days after contract is confirmed.

Our Office

Our Workshop

Our Team

Our Cases

Exhibition

Certificate

Packing & Delivery

Frequently Asked Questions

What is the primary function of an industrial sand core shooting machine?

An industrial sand core shooting machine is designed for metal casting production. It shoots resin-bonded sand mixtures into a core box using compressed air to produce solid, high-precision sand cores needed for creating hollow cavities inside cast components.

What industries and applications benefit most from this casting technology?

It is widely applied in producing complex metal parts such as sanitary faucets, locks, door handles, automotive spare parts (bumpers, supports, wheel rims), and high-precision hardware in zamak, brass, aluminum, and iron casting industries.

What are the standard payment terms and delivery periods?

Our standard payment terms require a 50% TT deposit after the contract is signed, with the remaining 50% TT balance due prior to machine delivery. The typical production and delivery cycle is approximately 90 days after contract confirmation.

How is after-sales service and installation handled internationally?

We offer comprehensive support including an initial 12-month equipment warranty. In-field installation and commissioning support are included within the first 10 days of technician dispatch. Extended technician support is available at standard daily rates plus travel/lodging costs.

Can the machine fixtures and cloth wheel dimensions be customized?

Yes, while standard configurations are provided, the fixture layouts and specific dimensions (such as polishing cloth wheel widths) can be customized to align perfectly with the client’s unique manufacturing standards and workpieces.
