Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine for the casting industry in metal casting production
| Code | Items | Parameters |
|---|---|---|
| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 8 | Machine base | Standard |
| 9 | Voltage | 380V |
| 10 | Sand Belt specification | 4000MM/2500MM |
| 11 | Max. Liner speed of grinding | 29M/S |
| 12 | Max. Liner speed of polishing | 45M/S |
| 13 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 17 | Air cylinder | AirTAC |
| 18 | Bearing | NSK |
| 19 | Open guide slide block | LSPB |
| 20 | Open linear guide | LSPB |
| 21 | Three-phase induction motor | Planet |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| 24 | Cloth wheels dimension | Dia. 600; The width can be customized. |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | Standard warranty |
| 2 | Service response time | Within 24 hours | Global support |
| 3 | Installation and Commissioning Fees at End User Site |
- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation |
On-site support |
1. Random attached 1 set fixture, buffs, and polishing wax.
2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
3. Delivery time: 90 days after contract is confirmed.
This machine is widely used in metal casting production for manufacturing faucets, automobile spare parts, locks, door handles (including Zamak handles, door hinges, and aluminum handles), and various automotive components such as bumpers, supports, bars, and wheel rims.

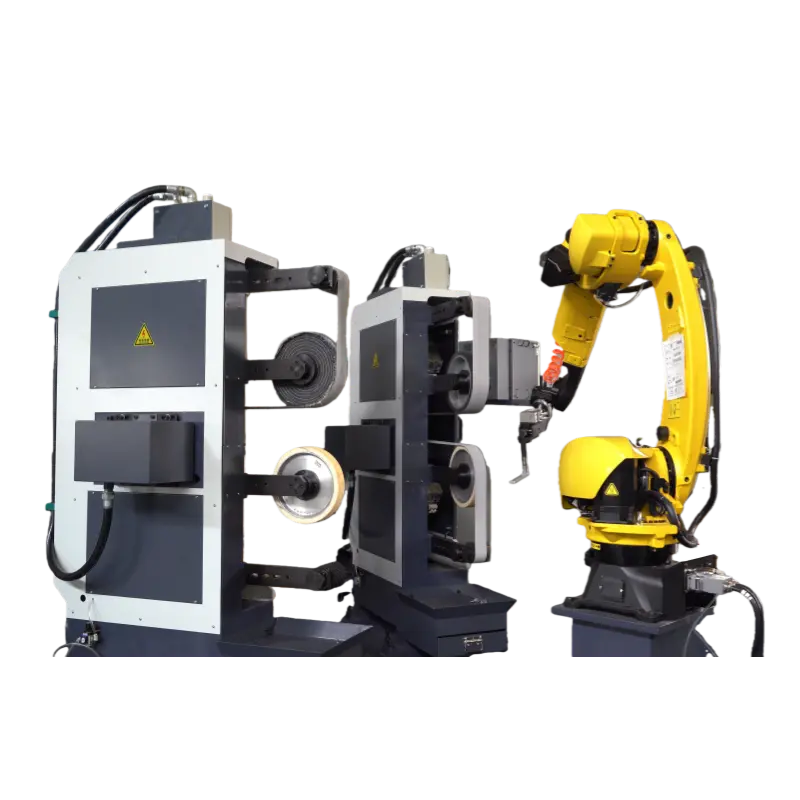

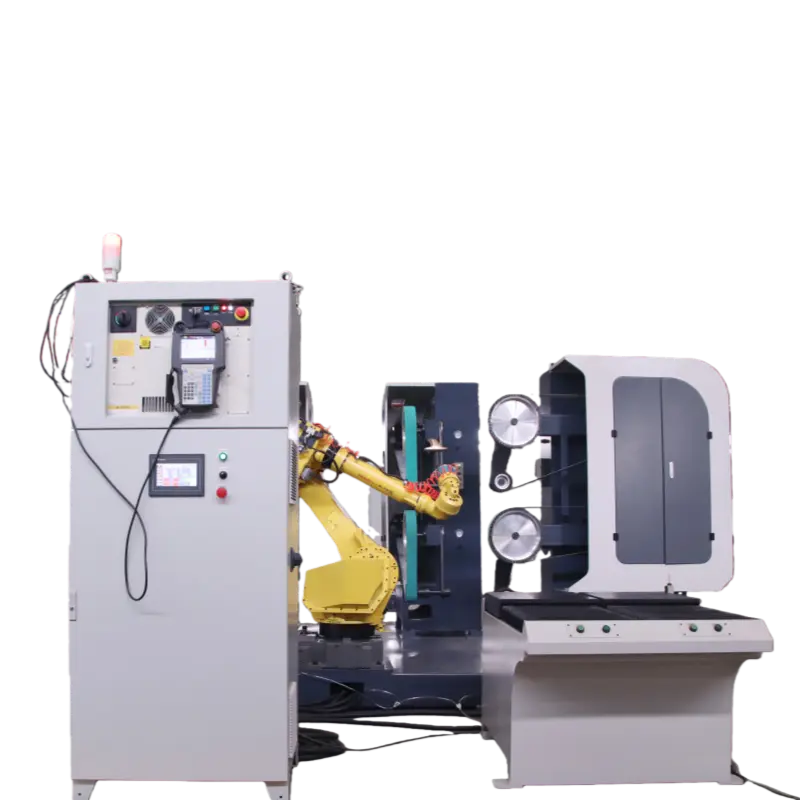

The system features a high-performance FANUC M20iD/35 robot cell, which ensures outstanding precision, stability, and consistent quality during the grinding and polishing processes.
We provide a comprehensive 12-month machine warranty. In case of any technical issues, our service response time is guaranteed within 24 hours to minimize your production downtime.
Our standard payment terms require a 50% TT deposit after the contract is signed, with the remaining 50% TT payment due prior to delivery. The typical delivery time is 90 days after contract confirmation.
Yes, while the standard diameter of the cloth wheels is 600mm, the width of the wheels can be fully customized to meet your specific production and workpiece requirements.
The sand belt machine has a maximum power of 16 KW, and the cloth wheel polishing machine has a maximum power of 17.5 KW. The system operates on a 380V voltage and requires an air pressure range of 0.4 to 0.7Mpa.
