Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine designed specifically for the casting industry to enhance efficiency and precision in metal casting production.
| Code | Items | Parameters |
|---|---|---|

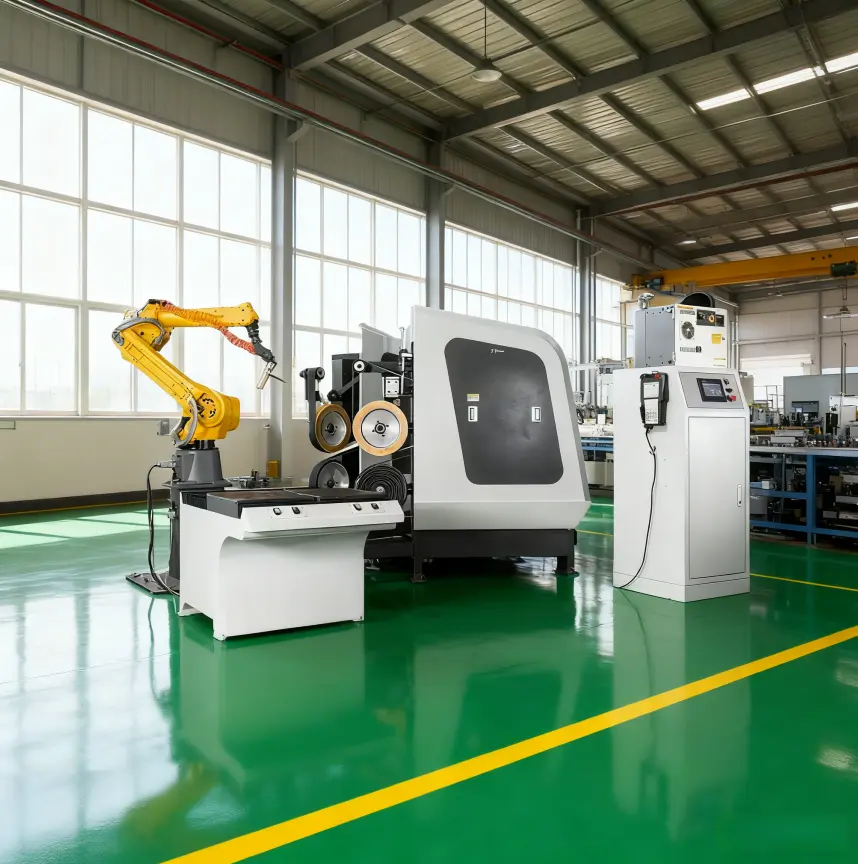

| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power (Sand Belt) | 16 KW |
| 7 | Max. Power (Polishing) | 17.5 KW |
| 9 | Voltage | 380V |
| 10 | Sand Belt Specification | 4000MM/2500MM |
| 11 | Max. Linear speed (Grinding) | 29M/S |
| 12 | Max. Linear speed (Polishing) | 45M/S |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine Size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| Code | Items | Details |
|---|---|---|
| 1 | Machine warranty | 12 months |
| 2 | Service response time | Within 24 hours |
| 3 | Installation & Commissioning | Within 10 days included; Over 10 days subject to daily rate |
1. Randomly attached 1 set fixture, buffs, and polishing wax.
2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
3. Delivery time: 90 days after contract is confirmed.
