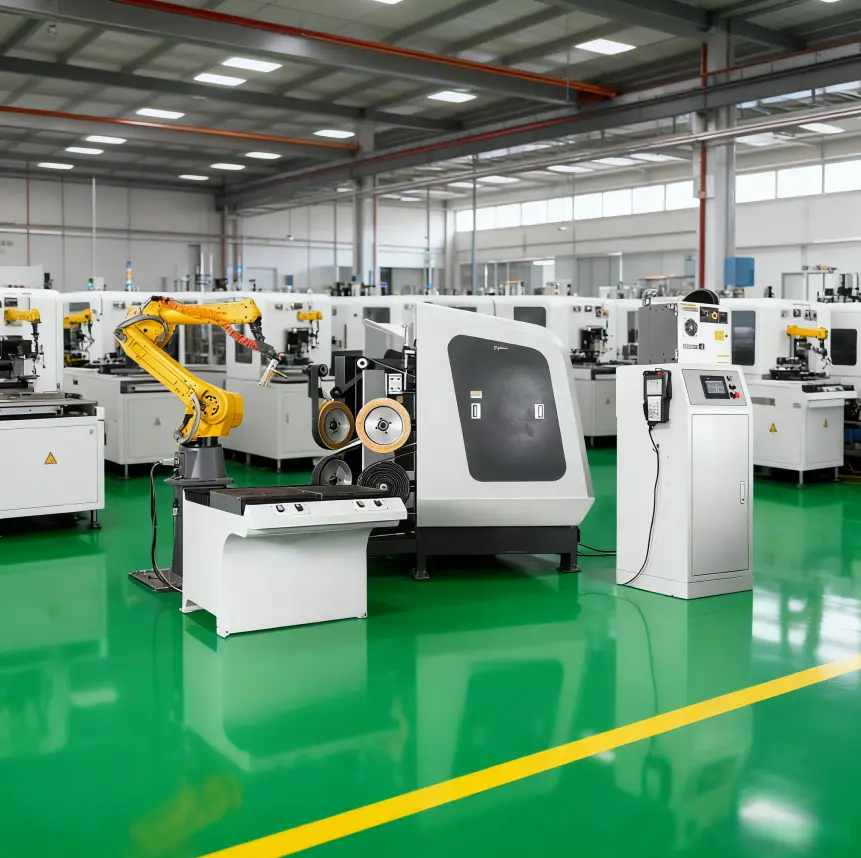

Wholesale Automatic Polishing Robot for Stainless Steel Parts Manufacturer, Exporters

1 / 5

Wholesale Automatic Polishing Robot for Stainless Steel Parts Manufacturer, Exporters

â— Compact structure with optimized factory space utilization

â— Durable mechanical structure for long service life

â— Supports customized automation solutions

â— Available with multi axis robotic configuration

â— Can be equipped with safety protection systems

Send Inquiry

Product Description

Video Demonstration

Product Introduction

Industrial sand core shooting machine for metal casting production

Outstanding quality sand core shooting machine for the casting industry in metal casting production.

Applications

1 Faucets
2 Automobile spare parts
3 Locks, door handles, Zamak handles & hinges
4 Automotive bumpers, supports, bars, and wheel rims

Machine Layout

Technical Parameters

Code	Items	Parameters
1	Robot Cell (FANUC)	M20iD/35
2	Sand Belt Machine	142116252385mm
3	Cloth wheel polishing machine	100015002200mm
4	Double-layers feeding table	Double-layers feeding table
5	Fixture	400 mm
6	Max. Power of sand belt machine	16 KW
7	Max. Power of cloth wheel polishing machine	17.5 KW
8	Machine base	-
9	Voltage	380V
10	Sand Belt specification	4000MM/2500MM
11	Max. Liner speed of grinding	29M/S
12	Max. Liner speed of polishing	45M/S
13	Three-phase induction motor	3KW-4P (1440r/min)
14	Air Pressure	0.4~0.7Mpa
15	Machine size	240038002700mm
16	Total Weight	4000KG
17	Air cylinder	AirTAC
18	Bearing	NSK
19	Open guide slide block	LSPB
20	Open linear guide	LSPB
21	Three-phase induction motor	Planet
22	HMI	Delta
23	PLC	Delta
24	Cloth wheels dimension	Dia. 600; The width can be customized.

Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Installation and Commissioning Fees at End User Site	- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation	-

Important Notes

Random attached 1set fixture, buffs, and polishing wax.
Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
Delivery time: 90 days after contract is confirmed.

Our Company

We (established in 2016) are a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring.

With exports to 30+ countries (Turkey, India, Mexico, USA, Southeast Asia, etc.) and partnerships with top brands, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms.

50+ patents and a 60+ R&D team drive innovations in low-pressure casting and robotic automation. We deliver end-to-end solutions—from mold design (CAE simulation) to lean factory layouts—backed by 24/7 global support, localized service centers, and 48-hour on-site assistance.

CE-certified with strict material inspection and a 1-year warranty, we prioritize eco-friendly practices and operational excellence. Committed to "liberating workers' hands," we envision leading the future of intelligent automation, helping clients achieve productivity breakthroughs and sustainable growth.

Partner with us to transform your manufacturing with cutting-edge technology and world-class expertise.

Our Office Video Overview

Our Workshop

Our Team

Our Cases

Exhibition Highlights

Certificates & Quality Assurance

Packing & Delivery

Frequently Asked Questions

What are the primary applications of this sand core shooting machine?

The sand core shooting machine is highly optimized for metal casting production including faucets, locks and door handles, Zamak handles, door hinges, aluminum handles, and automotive components such as bumpers, supports, bars, and wheel rims.

What are the key technical parameters and power specifications of the machinery?

The system features a voltage of 380V, 0.4~0.7Mpa air pressure, and a total weight of 4000KG. The maximum power of the sand belt machine is 16 KW, and the cloth wheel polishing machine is 17.5 KW, supported by high-quality NSK bearings and AirTAC air cylinders.

What does the 12-month machine warranty cover?

The machine includes a full 12-month warranty beginning from installation. In addition, we guarantee a swift technical response time within 24 hours to ensure minimal downtime in your production line.

How does onsite installation and commissioning work?

Onsite installation and commissioning are included without extra labor fees if completed within 10 days. Beyond 10 days, a rate of USD 200 per day per person applies, with travel, accommodation, meals, and translator costs covered by the end user.

What are the standard payment and delivery terms?

Standard transaction terms are a 50% TT deposit upon contract signature, followed by the remaining 50% TT payment prior to dispatch. The standard delivery timeline is 90 days after contract confirmation.

Does the machine package include custom parts?

Yes, each standard shipment includes a randomly attached package of 1 set of fixtures, buffs, and polishing wax. Customizations such as specific cloth wheel widths are also supported upon request.
