Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine for the casting industry in metal casting production.
The system is widely implemented across high-demand industrial casting and finishing processes:
| Code | Items | Parameters |
|---|---|---|

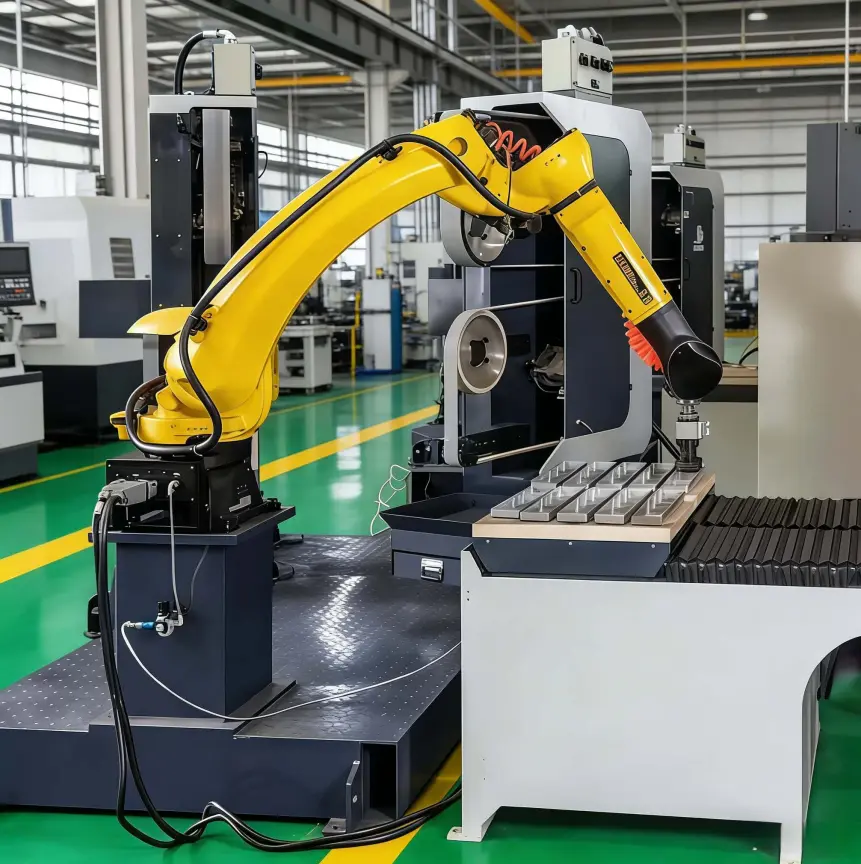

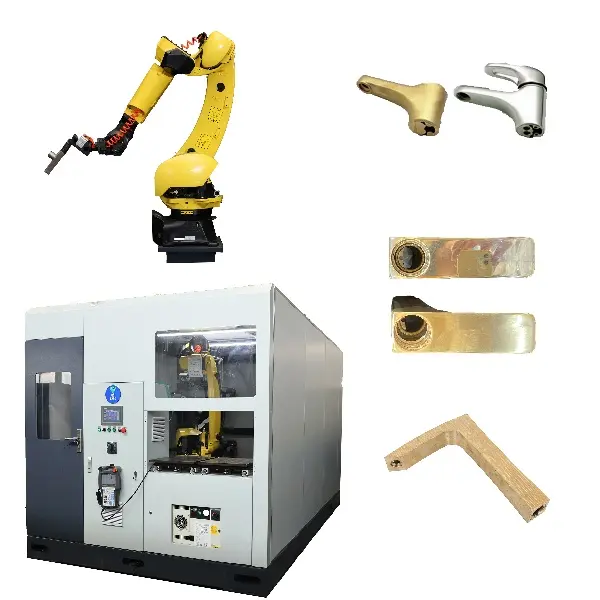

| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 8 | Machine base | Available |
| 9 | Voltage | 380V |
| 10 | Sand Belt specification | 4000MM/2500MM |
| 11 | Max. Liner speed of grinding | 29M/S |
| 12 | Max. Liner speed of polishing | 45M/S |
| 13 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 17 | Air cylinder | AirTAC |
| 18 | Bearing | NSK |
| 19 | Open guide slide block | LSPB |
| 20 | Open linear guide | LSPB |
| 21 | Three-phase induction motor | Planet |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| 24 | Cloth wheels dimension | Dia. 600 (Customizable width) |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | Standard Coverage |
| 2 | Service response time | Within 24 hours | Fast Technical Support |
| 3 | Installation and Commissioning Fees at End User Site |
- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation |
On-site Assistance Terms |
1. Accessories Included: Random attached 1 set of fixtures, buffs, and polishing wax.
2. Payment Terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
3. Delivery Timeline: 90 days after contract is confirmed.
Established in 2016, our manufacturing company is a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring.
With exports to 30+ countries (Turkey, India, Mexico, USA, Southeast Asia, etc.) and partnerships with top global brands, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms.
50+ patents and a 60+ R&D team drive innovations in low-pressure casting and robotic automation. We deliver end-to-end solutions—from mold design (CAE simulation) to lean factory layouts—backed by 24/7 global support, localized service centers (India, Turkey, Egypt), and 48-hour on-site assistance.
CE-certified with strict material inspection and a 1-year warranty, we prioritize eco-friendly practices and operational excellence. Committed to "liberating workers' hands," our team envisions leading the future of intelligent automation, helping clients achieve productivity breakthroughs and sustainable growth.
Partner with us to transform your manufacturing with cutting-edge technology and world-class expertise.
