China Robotic Surface Finishing Machine for Industrial Use Supplier, Factory

â— Enhances workplace safety by reducing manual polishing risks

â— Low operating cost and high return on investment

â— Reduces dust exposure and improves working environment

â— Easy parameter setting for different polishing requirements

â— Simple operation interface suitable for factory operators

Send Inquiry

Product Description

Video Demonstration

Product Introduction

Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine for the casting industry in metal casting production

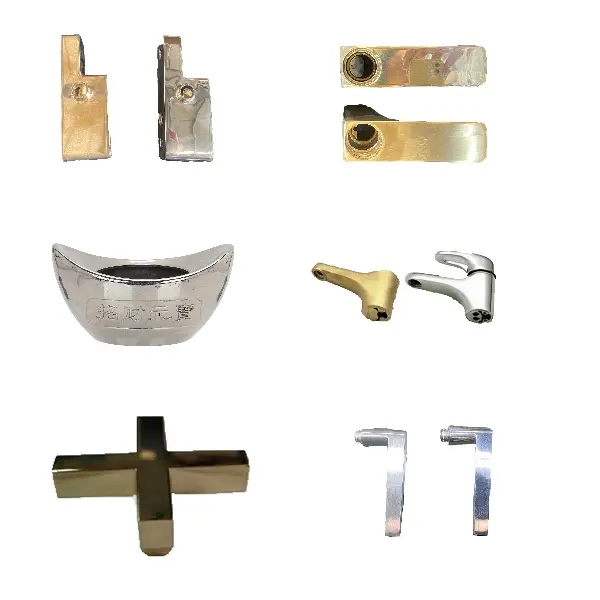

Applications

Faucets
Automobile spare parts
Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
Automotive components: bumpers, supports, bars, wheel rims

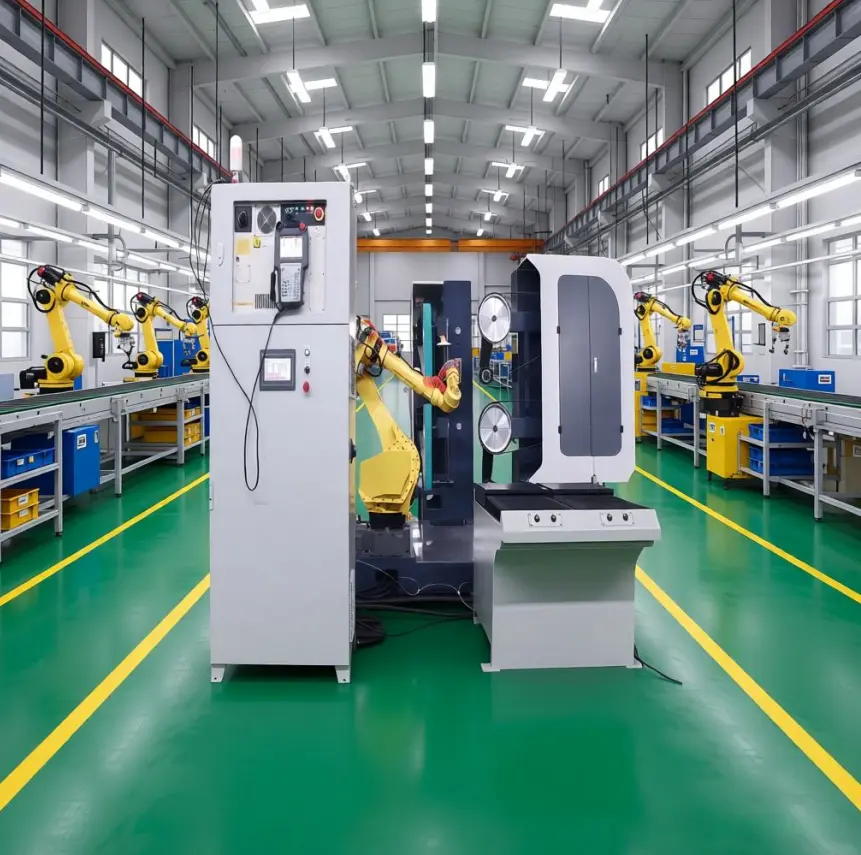

Machine Layout

Technical Parameters

Code	Items	Parameters
1	Robot Cell (FANUC)	M20iD/35
2	Sand Belt Machine	142116252385mm
3	Cloth wheel polishing machine	100015002200mm
4	Double-layers feeding table	Double-layers feeding table
5	Fixture	400 mm
6	Max. Power of sand belt machine	16 KW
7	Max. Power of cloth wheel polishing machine	17.5 KW
8	Machine base	-
9	Voltage	380V
10	Sand Belt specification	4000MM/2500MM
11	Max. Liner speed of grinding	29M/S
12	Max. Liner speed of polishing	45M/S
13	Three-phase induction motor	3KW-4P (1440r/min)
14	Air Pressure	0.4~0.7Mpa
15	Machine size	240038002700mm
16	Total Weight	4000KG
17	Air cylinder	AirTAC
18	Bearing	NSK
19	Open guide slide block	LSPB
20	Open linear guide	LSPB
21	Three-phase induction motor	Planet
22	HMI	Delta
23	PLC	Delta
24	Cloth wheels dimension	Dia. 600; The width can be customized.

Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Installation and Commissioning Fees at End User Site	- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation	-

Important Notes

Operation & Trade Terms:

1. Random attached 1set fixture, buffs, and polishing wax.

2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.

3. Delivery time: 90 days after contract is confirmed.

Machinery Demonstration Videos

Production Workshop

Technical Support Team

Application Cases

Exhibition & Global Presence

Global Sales and Service Network Showcase

International Customer On-site Demonstration

Certifications

Industrial Machinery Patent Certificate 3

Advanced Technology Enterprise Certification 5

Environmental Management Certification 6

Packing & Delivery

Frequently Asked Questions

What are the primary applications of this industrial sand core shooting machine?

This industrial sand core shooting machine is mainly designed for high-efficiency metal casting production. It is widely used to manufacture complex, high-precision sand cores for products like faucets, automobile spare parts, locks, door handles, hinges, and various automotive components (such as bumpers, supports, bars, and wheel rims).

What are the key technical parameters and power requirements?

The machine operates on a 380V voltage system with working air pressure requirements between 0.4 to 0.7 Mpa. Key components include a FANUC Robot Cell (M20iD/35), a 16 KW sand belt machine, and a 17.5 KW cloth wheel polishing machine. The standard dimension of the cloth wheels is Dia. 600mm, with customizable widths.

What brand of key components are used in the machinery?

To ensure outstanding quality, high stability, and long-term durability in casting environments, the machine uses premium international components, including FANUC robotics, AirTAC air cylinders, NSK bearings, LSPB open guide slide blocks/linear guides, and reliable HMI & PLC controllers from Delta.

What is the standard warranty and after-sales service response time?

We provide a comprehensive 12-month machine warranty starting from installation. In case of operational or technical issues, our service team guarantees a responsive response time within 24 hours. On-site installation and commissioning services at the end-user site are included for up to 10 days.

What are the payment terms, packaging, and delivery time?

Our standard payment term is a 50% TT deposit upon signing the contract, with the remaining 50% TT payment due prior to delivery. The standard delivery time is 90 days after contract confirmation. All machines are packed securely using robust, sea-freight compatible wooden boxes and loaded carefully into export containers to prevent damage.
