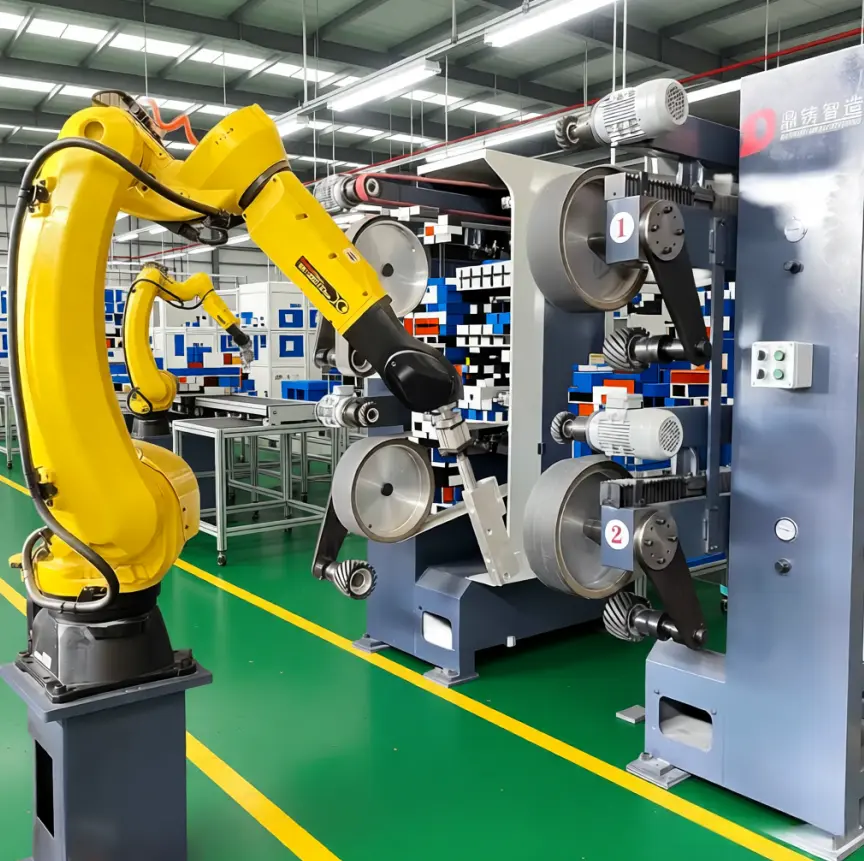

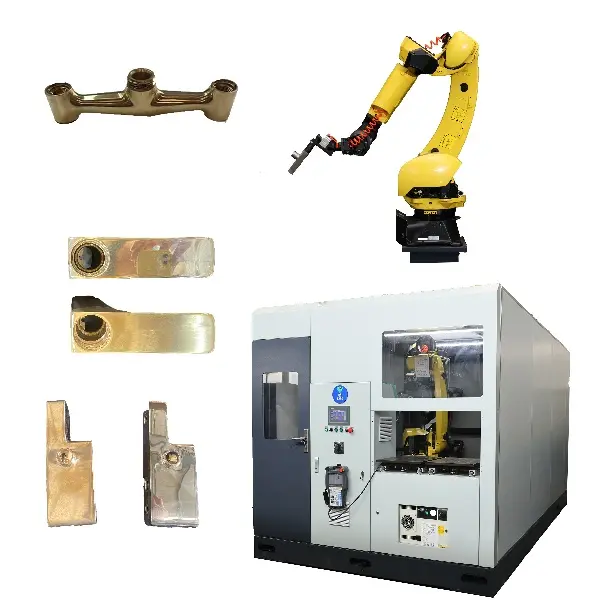

China Robotic Polishing Equipment for Hardware Industry Manufacturer, Exporters

1 / 5

China Robotic Polishing Equipment for Hardware Industry Manufacturer, Exporters

â— Reduces training time for new operators

â— Supports quick changeover for different product types

â— Improves production planning flexibility

â— Helps manufacturers upgrade toward smart manufacturing

â— Enhances production stability and capacity planning

Send Inquiry

Product Description

🎥 Product Video

🛠️ Product Introduction

Industrial sand core shooting machine for metal casting production. Outstanding quality sand core shooting machine designed specifically for the casting industry in metal casting production.

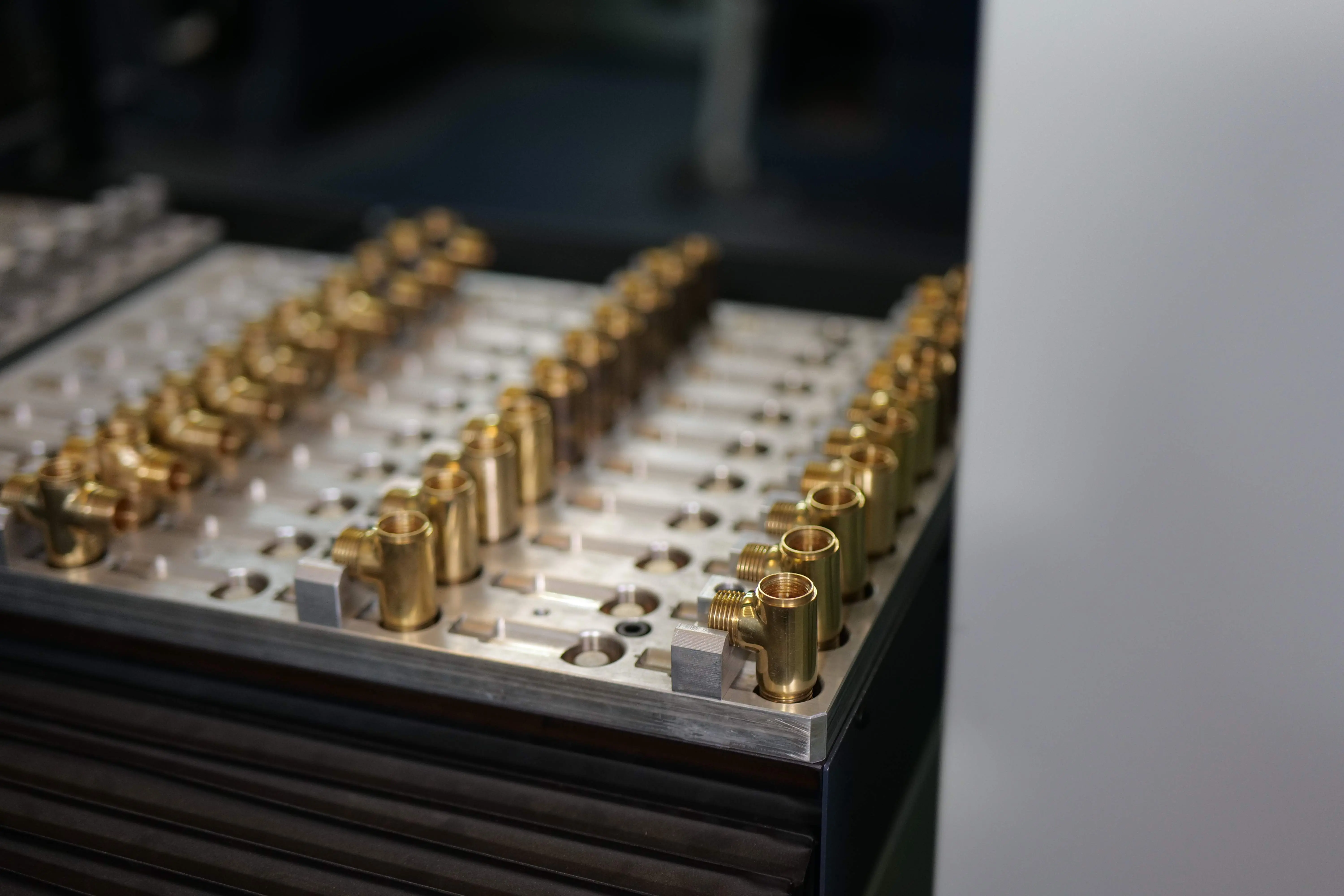

🚀 Applications

Faucets and plumbing fixtures
Automobile spare parts
Locks, door handles, Zamak handles, door hinges, and aluminum handles
Automotive components: bumpers, supports, bars, wheel rims

📐 Machine Layout

📊 Technical Parameters

Code	Items	Parameters
1	Robot Cell (FANUC)	M20iD/35
2	Sand Belt Machine	142116252385mm
3	Cloth wheel polishing machine	100015002200mm
4	Double-layers feeding table	Double-layers feeding table
5	Fixture	400 mm
6	Max. Power of sand belt machine	16 KW
7	Max. Power of cloth wheel polishing machine	17.5 KW
8	Machine base	Standard
9	Voltage	380V
10	Sand Belt specification	4000MM/2500MM
11	Max. Liner speed of grinding	29M/S
12	Max. Liner speed of polishing	45M/S
13	Three-phase induction motor	3KW-4P (1440r/min)
14	Air Pressure	0.4~0.7Mpa
15	Machine size	240038002700mm
16	Total Weight	4000KG
17	Air cylinder	AirTAC
18	Bearing	NSK
19	Open guide slide block	LSPB
20	Open linear guide	LSPB
21	Three-phase induction motor	Planet
22	HMI	Delta
23	PLC	Delta
24	Cloth wheels dimension	Dia. 600 (Width customizable)

🛡️ Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Site Commissioning	- Within 10 days included - Over 10 days: USD 200/day/person + travel costs	Translator cost paid by user

📝 Important Notes

1. Random attached 1 set fixture, buffs, and polishing wax.

2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.

3. Delivery time: 90 days after contract is confirmed.

🏢 About Us

Established in 2016, we are a global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Our core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines, serving industries such as water meter casting, door locks, auto parts, and precision deburring.

With exports to 30+ countries and partnerships with top global brands, we empower manufacturers with safer, greener, and smarter production through proprietary technologies like dynamic pressure control and multi-axis robotic algorithms. Our team holds 50+ patents and provides 24/7 global support, localized service centers, and 48-hour on-site assistance.

🖼️ Our Environment & Team

Office & Workshop:

Team & Cases:

📜 Certificates

📦 Packing & Delivery

❓ Frequently Asked Questions

Q1: What are the primary applications of this sand core shooting machine? A1: It is widely used in metal casting production for products like faucets, automobile spare parts, locks, door handles, and various automotive components like bumpers and wheel rims.

Q2: What is the warranty period and response time for after-sales service? A2: The machine comes with a 12-month warranty. Our service team responds to inquiries within 24 hours to ensure minimal downtime.

Q3: What key technical components are integrated into the machine? A3: The machine features high-quality components including FANUC robot cells, Delta PLC and HMI systems, NSK bearings, and AirTAC air cylinders.

Q4: Does the purchase include any spare parts or fixtures? A4: Yes, each machine comes with a standard set of 1 fixture, buffs, and polishing wax as part of the random attachment kit.

Q5: What are the installation and commissioning terms for international customers? A5: Installation and commissioning within the first 10 days at the end-user site are included. For periods exceeding 10 days, a daily fee per person applies plus travel and accommodation costs.

Q6: What is the estimated delivery time after order confirmation? A6: The standard delivery time is 90 days once the contract is confirmed and the deposit is received.
