| Code | Items | Parameters |
|---|---|---|
| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 8 | Machine base | Standard |
| 9 | Voltage | 380V |
| 10 | Sand Belt specification | 4000MM/2500MM |
| 11 | Max. Liner speed of grinding | 29M/S |
| 12 | Max. Liner speed of polishing | 45M/S |
| 13 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 17 | Air cylinder | AirTAC |
| 18 | Bearing | NSK |
| 19 | Open guide slide block | LSPB |
| 20 | Open linear guide | LSPB |
| 21 | Three-phase induction motor (Planet) | Planet |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| 24 | Cloth wheels dimension | Dia. 600; The width can be customized. |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | - |
| 2 | Service response time | Within 24 hours | - |
| 3 | Installation and Commissioning Fees at End User Site |
- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation |
- |

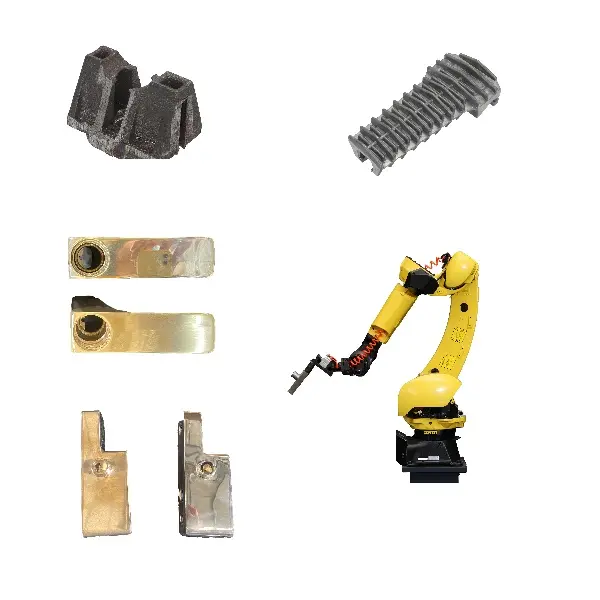

This industrial sand core shooting machine is designed for casting faucets, locks, automobile spare parts, door handles, Zamak handles, door hinges, aluminum handles, and automotive structural components (bumpers, supports, wheel rims).

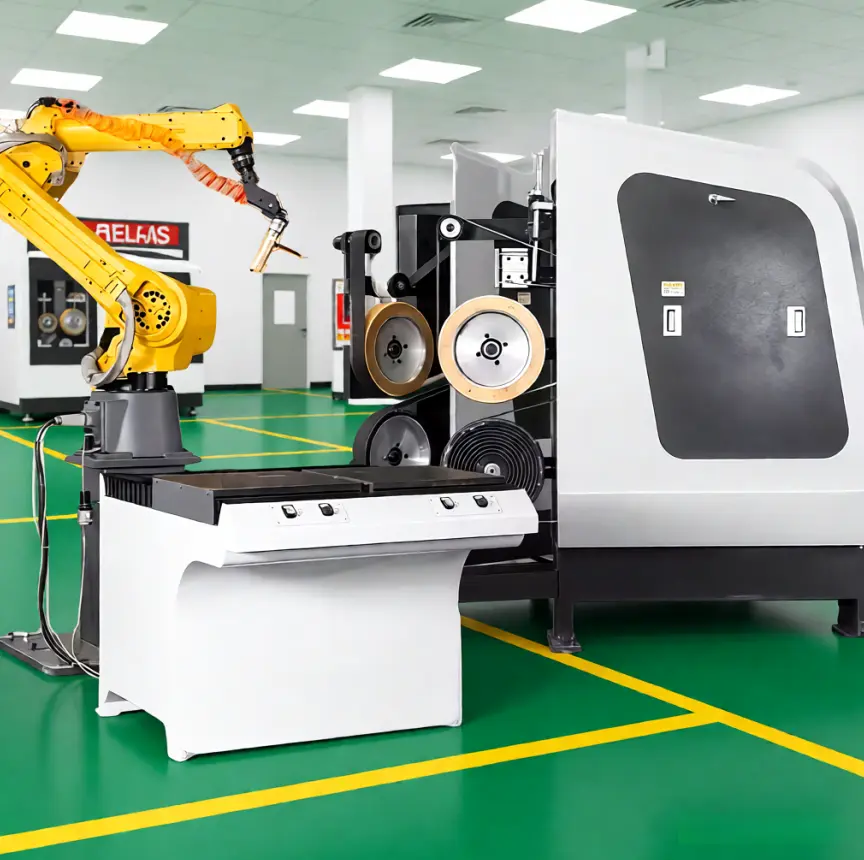

The machine setup utilizes a premium FANUC Robot Cell (Model M20iD/35) to provide highly reliable, precise, and automated core shooting and grinding processes.
To guarantee performance and high durability, our systems incorporate components from world-class manufacturers: HMI & PLC systems from Delta, high-grade bearings from NSK, and pneumatic cylinders from AirTAC.
The standard delivery time is 90 days after the signing and confirmation of the contract. The payment terms are 50% TT deposit upon signing the contract, with the remaining 50% TT payment settled before shipping and delivery.
The machinery includes a 12-month full warranty. Service support is highly responsive, guaranteeing feedback within 24 hours. On-site setup, installation, and tuning assistance can be provided by experienced specialists at end-user facilities.
Yes, specific components like the width of the cloth wheels can be fully customized according to your exact product profiles and foundry requirements. The system also comes with a randomly attached set of fixture parts and polishing compounds.
