Industrial Sand Core Shooting Machine: High-performance solution for metal casting production. This equipment ensures outstanding quality for the casting industry, optimized for precision and efficiency in creating sand cores.
| Code | Items | Parameters |
|---|---|---|

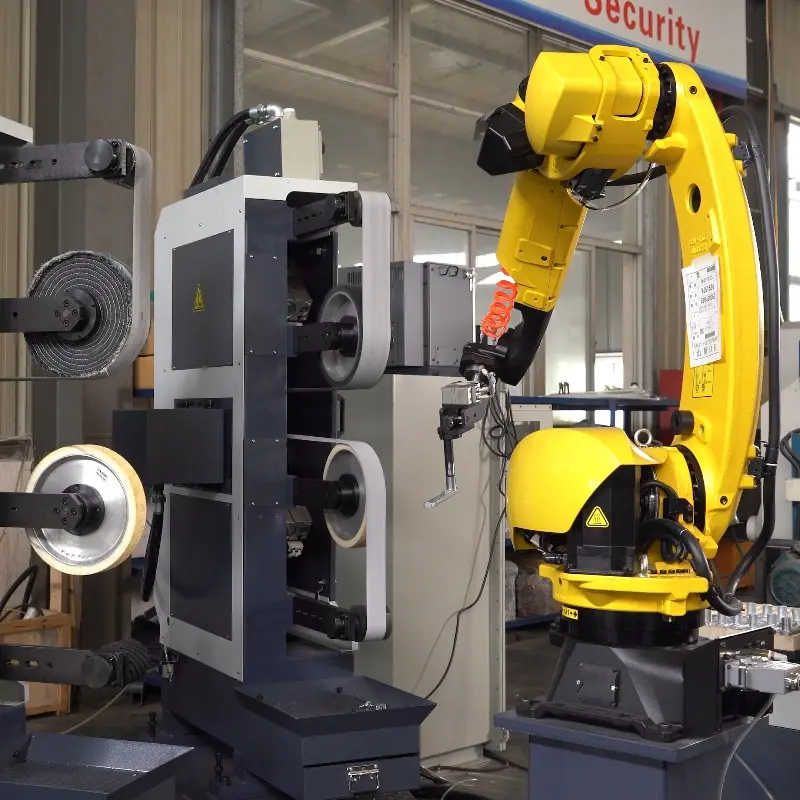

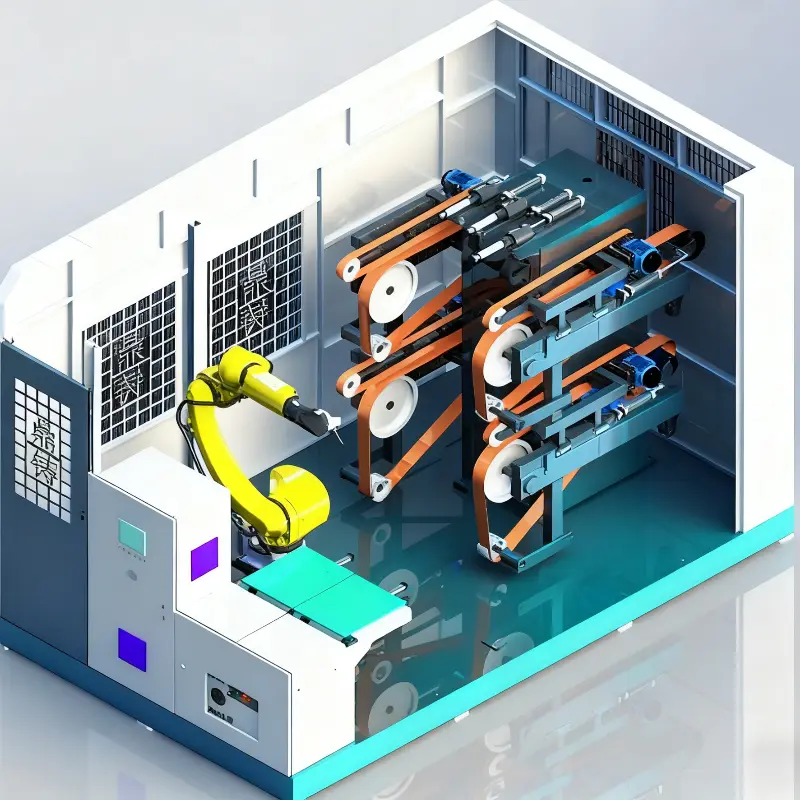

| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Customizable |
| 5 | Fixture | 400 mm |
| 6 | Max. Power (Sand Belt) | 16 KW |
| 7 | Max. Power (Polishing) | 17.5 KW |
| 8 | Voltage | 380V |
| 9 | Sand Belt specification | 4000MM/2500MM |
| 10 | Max. Liner speed of grinding | 29M/S |
| 11 | Max. Liner speed of polishing | 45M/S |
| 12 | Air Pressure | 0.4~0.7Mpa |
| 13 | Machine size | 2400*3800*2700mm |
| 14 | Total Weight | 4000KG |
| 15 | Core Components | AirTAC / NSK / Delta |
| Code | Service Item | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | Standard |
| 2 | Service response time | Within 24 hours | Global support |
| 3 | Installation & Commissioning | Within 10 days included | Terms apply for extended stays |
1. Randomly attached: 1 set of fixtures, buffs, and polishing wax.
2. Payment terms: 50% deposit after contract; 50% before delivery.
3. Delivery time: Standard 90 days after contract confirmation.
