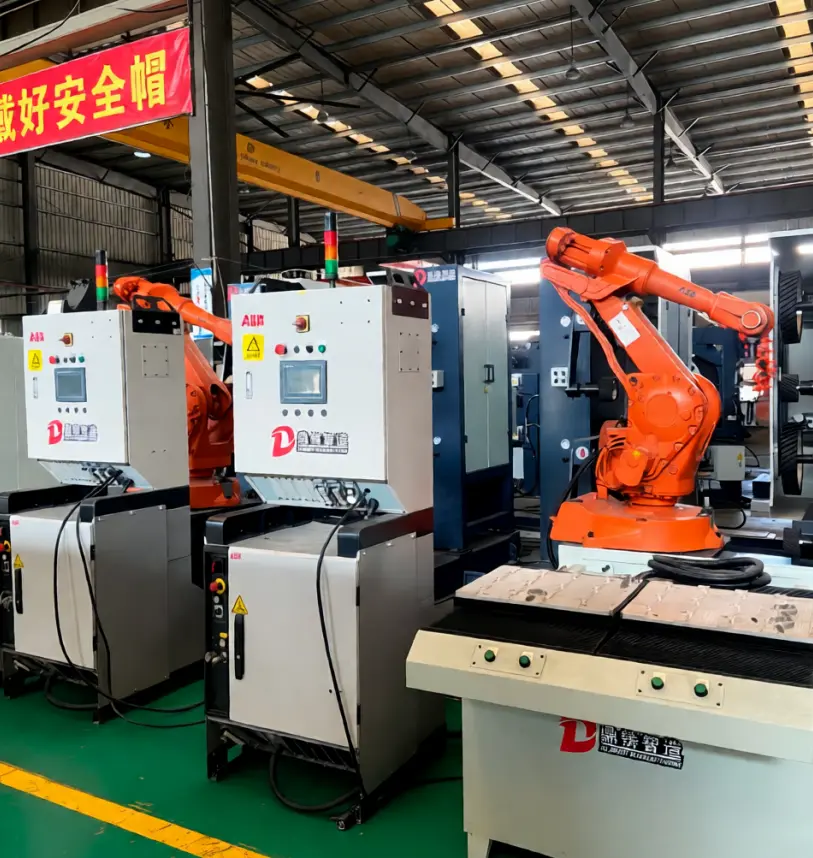

China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
1 / 5
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter
China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter

China Heavy Duty Robotic Grinding Machine for Industry Factory, Exporter

● Designed to support future production expansion

● Modular system structure for easy upgrading

● Compatible with various polishing tools and abrasives

● Allows flexible layout for different factory spaces

● Helps reduce overall production bottlenecks

Send Inquiry

Product Description

Product Video
Product Introduction

Industrial sand core shooting machine for metal casting production

Outstanding quality sand core shooting machine for the casting industry in metal casting production.

Applications
  • Faucets
  • Automobile spare parts
  • Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
  • Automotive components: bumpers, supports, bars, wheel rims
Application 1
Application 2
Application 3
Machine Layout
Machine Layout 1
Machine Layout 2
Machine Layout 3
Machine Layout 4
Machine Layout 5
Technical Parameters
Code Items Parameters
1Robot Cell (FANUC)M20iD/35
2Sand Belt Machine1421*1625*2385mm
3Cloth wheel polishing machine1000**1500*2200mm
4Double-layers feeding tableDouble-layers feeding table
5Fixture400 mm
6Max. Power of sand belt machine16 KW
7Max. Power of cloth wheel polishing machine17.5 KW
8Machine base-
9Voltage380V
10Sand Belt specification4000MM/2500MM
11Max. Liner speed of grinding29M/S
12Max. Liner speed of polishing45M/S
13Three-phase induction motor3KW-4P (1440r/min)
14Air Pressure0.4~0.7Mpa
15Machine size2400*3800*2700mm
16Total Weight4000KG
17Air cylinderAirTAC
18BearingNSK
19Open guide slide blockLSPB
20Open linear guideLSPB
21Three-phase induction motorPlanet
22HMIDelta
23PLCDelta
24Cloth wheels dimensionDia. 600; Customisable width
Warranty and After-Sales Service
Code Items Details Remarks
1Machine warranty12 months-
2Service response timeWithin 24 hours-
3Installation and CommissioningWithin 10 days included; Over 10 days: USD 200/day/person plus costsTranslator paid by user
Notes
  • Random attached 1set fixture, buffs, and polishing wax.
  • Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
  • Delivery time: 90 days after contract is confirmed.
Production Environment
Workshop & Team
Workshop 1
Workshop 2
Workshop 3
Team 1
Team 2
Team 3
Cases & Exhibitions
Case 1
Case 2
Case 3
Exhibition 1
Exhibition 2
Exhibition 3
Certificates & Packing
Certificate 1
Certificate 2
Packing 1
Packing 2
Packing 3
Packing 4
Frequently Asked Questions
What materials can be processed by this deburring and grinding machine?
The machine is designed for various metal casting productions, including Zamak, aluminum, and other metal alloys used in faucets, locks, and automotive parts.
What is the standard warranty period for the equipment?
We provide a 12-month machine warranty starting from the date of delivery.
How long does delivery take after the contract is confirmed?
The standard delivery time is 90 days after the contract and deposit are confirmed.
Does the machine support custom fixture sizes?
Yes, while the standard fixture is 400mm, cloth wheel widths and other dimensions can be customized according to your specific production needs.
What kind of after-sales support do you offer?
We guarantee a service response within 24 hours. We also offer on-site installation and commissioning services by our expert technical team.
What are the power and air pressure requirements?
The machine operates on a 380V voltage system and requires an air pressure range of 0.4 to 0.7 Mpa for optimal performance.
