•It can be frontal casting, side casting, twice casting and mixed casting.

•It is possible to individually adjust the cooling time of the die.

•It facilitates the decomposition, combination and cleaning of dies.

Send Inquiry

Product Description

1

Finished Samples

2

Product Introduction

  • The circuit is controlled by PLC, data is set via touch screen, and all hydraulic components are imported.
  • Suitable for gravity die casting of brass and ferrous alloy.
  • Supports frontal casting, side casting, twice casting, and mixed casting modes.
  • Equipped for complex products with rotary polishing robot integration for multi-purpose processing.
  • Individually adjustable cooling time for the die.
  • Facilitates easy decomposition, combination, and cleaning of dies.
  • Dual functions: manual and automatic circulation with preset output counters.
  • Flexible die adjustment space to accommodate different die sizes.
  • Secure storage for operation programs with password protection.
3

Industrial Applications

Faucets Automobile Spare Parts Locks & Door Handles Zamak Handles Door Hinges Aluminum Handles Bumpers & Supports Wheel Rims
4

Machine Layout & Design

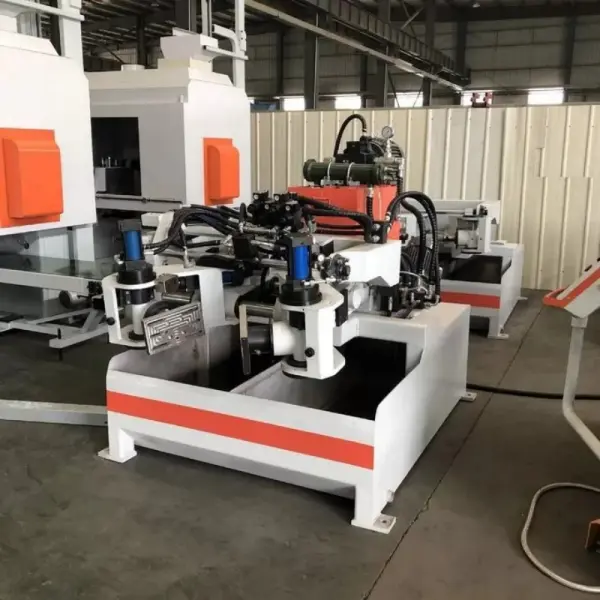

Semi-automatic casting machine
Metal casting machine

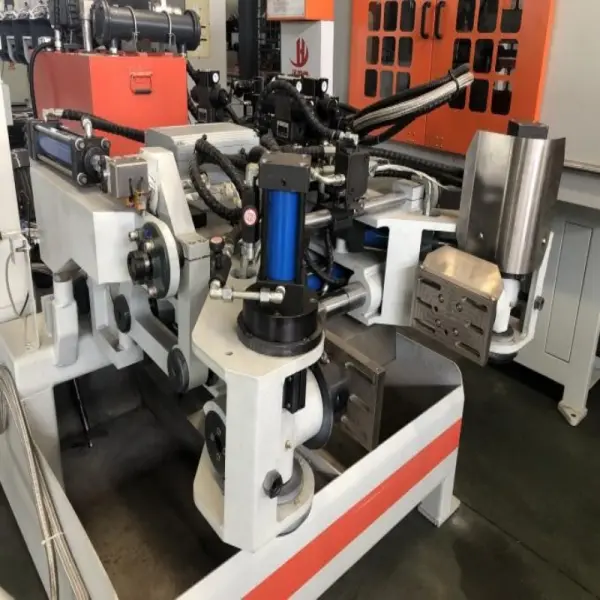

Gravity mold casting machine
Gravity Die Casting Machine
Gravity casting machine
Brass casting machine
5

Technical Parameters

No. Description Specifications
1MAX MOULD SIZE450mm
2Max Mould Weight130KG
3Max Die Thickness100mm
4Max Closing Force9610 N (980kg)
5Max Opening Force9610 N (980kg)
6Max Distance between die flanges435mm
7Max Die closing stroke≤250mm
8Metal Pouring MethodsDirect, Side, Twice, Mixed
9Hydraulic Pressure40-60 KPa
10Bench Inclination (Side Pouring)0º - 90º
11Die Rotation (Front Pouring)0º - 110º
12Hydraulic Tank Capacity163L
6

Warranty & Service

Items Details
Machine Warranty12 months
Service Response TimeWithin 24 hours
Installation & CommissioningWithin 10 days included at end user site
Notes:
1. Random attached 1 set fixture, buffs, and polishing wax.
2. Delivery time: 90 days after contract confirmation.
7

Manufacturing Capabilities

Specializing in intelligent manufacturing solutions including low-pressure die casting, grinding, polishing, and automation systems. Core offerings feature automatic LPDC machines, robotic cell grinding/polishing systems, and CNC polishing equipment. Serving industries such as water meter casting, auto parts, and precision deburring with 50+ patents and a dedicated R&D team.
8

Workshop & Global Presence

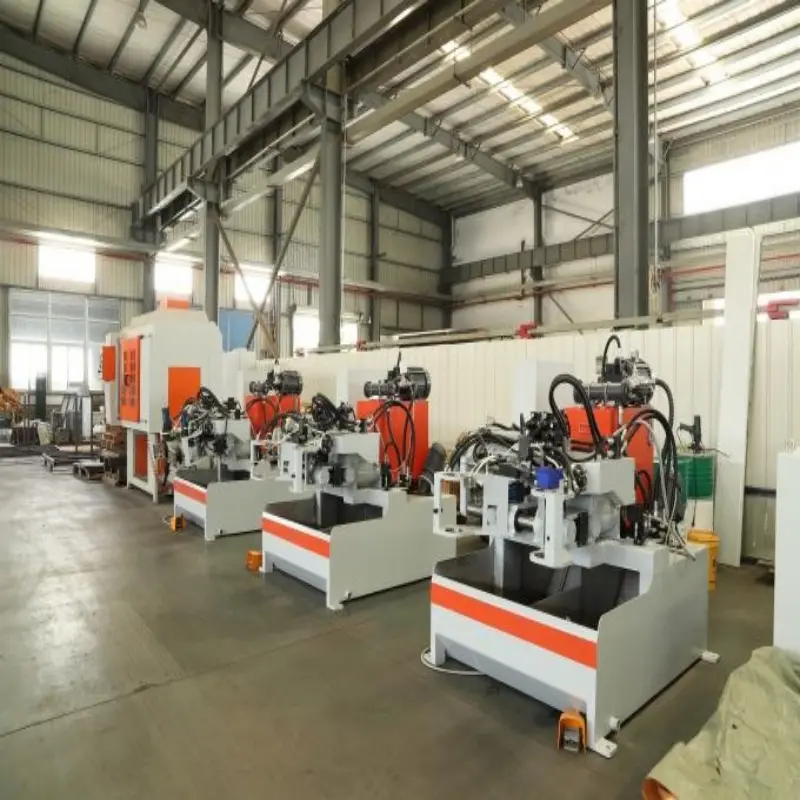

Workshop
Team
Exhibition
9

Certificates & Packaging

Certificate
Certificate
Packing
?

Frequently Asked Questions

Q1: Which materials are suitable for this gravity die casting machine? A: This machine is specifically designed for high-quality gravity die casting of brass and various ferrous alloys.
Q2: What casting modes does the machine support? A: It is highly versatile, supporting frontal casting, side casting, twice casting, and mixed casting to accommodate different product complexities.
Q3: How is the production process controlled? A: The machine utilizes a high-precision PLC control system. Operators can easily set and adjust parameters via a user-friendly touch screen interface.
Q4: Can the machine handle different mold sizes? A: Yes, it features a flexible die adjustment space, supporting a maximum mould size of 450mm and weights up to 130KG.
Q5: What is the standard warranty and support period? A: We provide a 12-month machine warranty with a guaranteed service response time of within 24 hours for technical support.
Q6: Is it possible to integrate this machine with robotic systems? A: Yes, the machine is designed for modern automation and can be integrated with rotary polishing robots for comprehensive product processing.
