Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine specifically engineered for the casting industry in metal casting production workflows.
| Code | Items | Parameters |
|---|---|---|

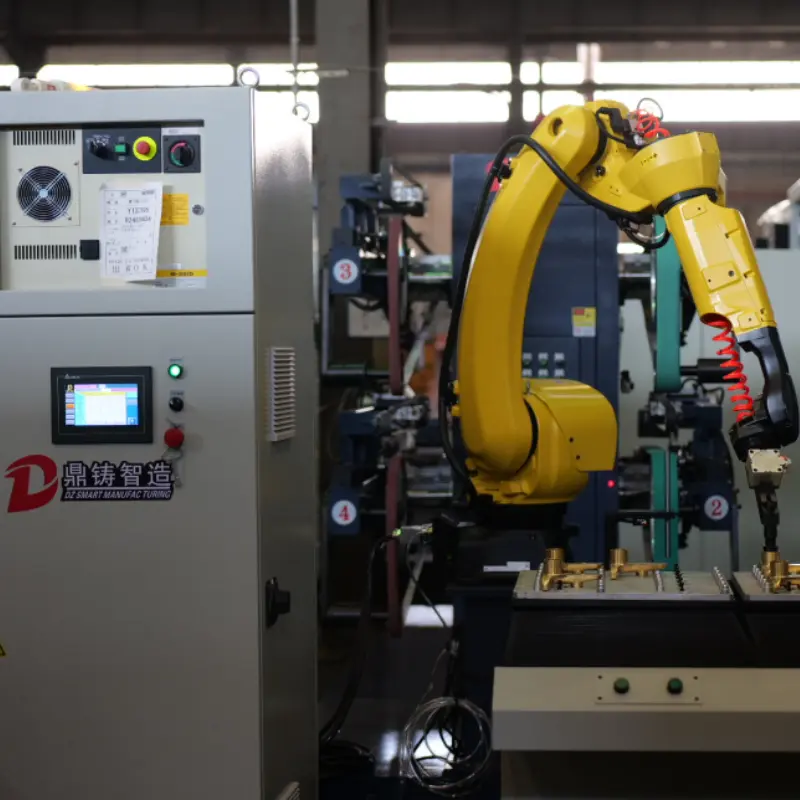

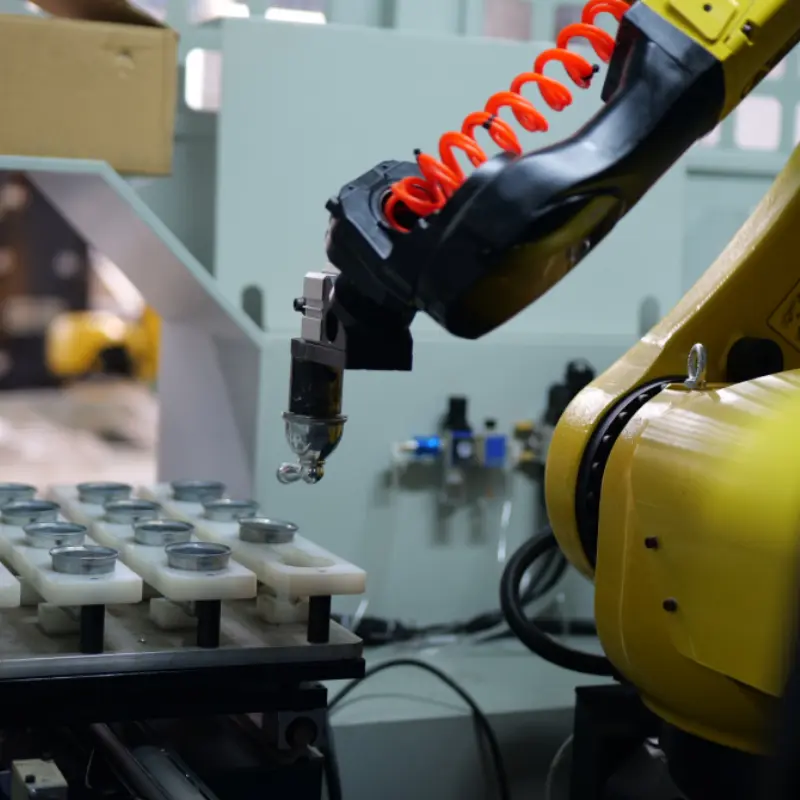

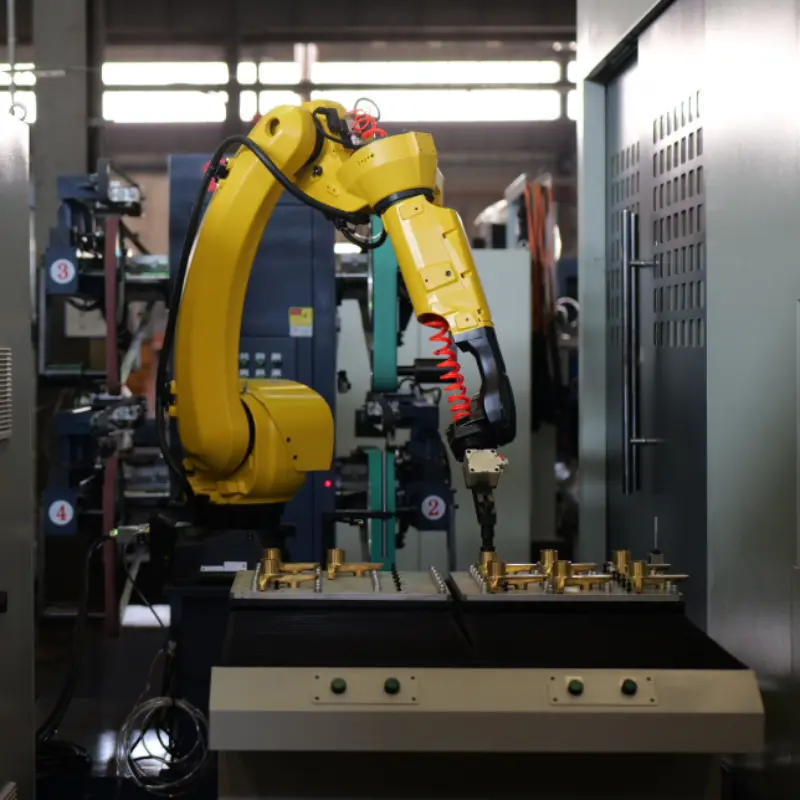

| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000**1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 9 | Voltage | 380V |
| 10 | Sand Belt specification | 4000MM/2500MM |
| 11 | Max. Liner speed of grinding | 29M/S |
| 12 | Max. Liner speed of polishing | 45M/S |
| 13 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 17 | Air cylinder | AirTAC |
| 18 | Bearing | NSK |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| 24 | Cloth wheels dimension | Dia. 600; Customized width |
| Code | Items | Details |
|---|---|---|
| 1 | Machine warranty | 12 months |
| 2 | Service response time | Within 24 hours |
| 3 | Installation and Commissioning | Within 10 days included; Over 10 days: USD 200/day/person plus costs |
Notes:
1. Random attached 1 set fixture, buffs, and polishing wax.
2. Payment: 50% TT deposit; 50% TT before delivery.
3. Delivery: 90 days after contract confirmation.
A global leader in intelligent manufacturing solutions specializing in low-pressure die casting, grinding, polishing, and automation systems. Core offerings include automatic LPDC machines, robotic cell grinding/polishing systems, CNC polishing equipment, and turnkey production lines.
