Product Introduction
01

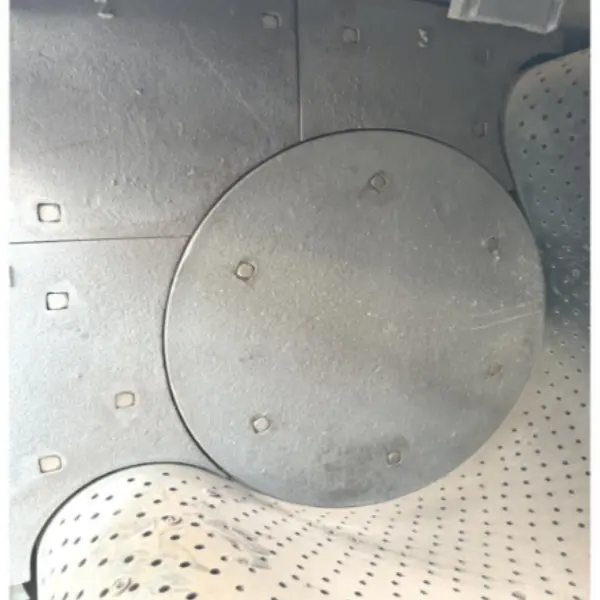

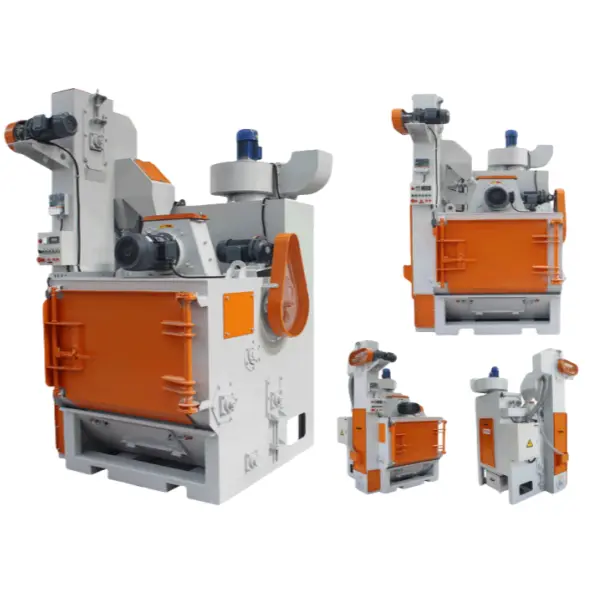

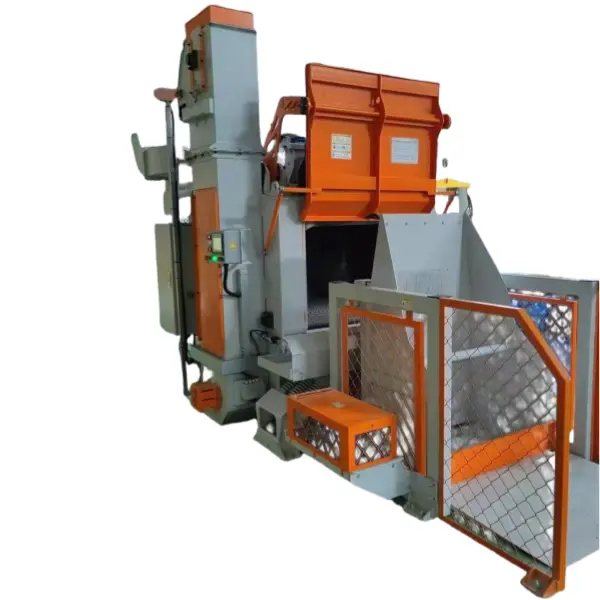

The caterpillar shot blasting machine is a high-strength wear-resistant rubber track or manganese steel track loading workpiece. It uses a high-speed rotating impeller to throw the projectile to the workpiece in the chamber to achieve the purpose of cleaning. It is suitable for small castings, forgings, stamping parts, gears, springs and other parts of sand cleaning, rust removal, removal of oxide and surface strengthening.
02
Features a cantilever centrifugal shot blasting device, offering long service life and a simple, efficient structure.
03
Versatile performance with three projectile speed options: 75 m/s, 80 m/s, and 85 m/s.
04
The pulley adopts an international advanced quick-change structure, improving production efficiency and reducing labor intensity.
05
Equipped with a BE separator, ensuring excellent separation effect and high productivity, which extends blade life.
06
Uses a bag dust collector to keep emission concentrations lower than national standards, significantly improving the working environment.
07
Includes specialized mechanisms such as a manual shot parting gate and discharge door for better control.
08
This model can be operated independently or integrated into a full production wiring system.
Applications
• Faucets, locks, and door handles (Zamak, Aluminum, etc.)
• Automobile spare parts and components (Bumpers, supports, wheel rims)
• Door hinges and precision hardware
Machine Layout
Technical Parameters
| Parameter Item |
Specification Details |
| Machine Size (L*W*H) | 2000 × 2000 × 2800 mm |
| Lifting Mode of Cleaning Chamber | Pneumatic |
| Track End Disc Diameter | 650 mm |
| End Disc Spacing | 900 mm |
| Track Size | 1130 × L3500 × 20 mm |
| Maximum Volume of Track | 100 L |
| Reducer Box Power | 0.75 Kw |
| Max Weight per Workpiece | 10 Kg |
| Max Size per Workpiece | L ≤ 300 mm, Φ ≤ 200 mm |
| Max Load | < 300 Kg |
| Impeller Head | 1 pc |
| Capacity | 100 Kg/min |
| Power of Impeller Head | 7.5 Kw |
| Impeller RPM | 2915 r/min |
| Separator Method | Air separator and filtration |
| Total Power | 11.6 KW |
| Air Compression | 0.4 - 0.6 MPa, 0.3 m³/min |
Warranty and After-Sales Service
| Code |
Items |
Details |
| 1 | Machine Warranty | 12 months |
| 2 | Service Response Time | Within 24 hours |
| 3 | Installation & Commissioning | Within 10 days included; Over 10 days: USD 200/day per person |
Notes
1. Random attached 1 set fixture, buffs, and polishing wax.
2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
3. Delivery time: 90 days after contract is confirmed.
Manufacturing Facilities
Project Cases
Certificates
Packing & Delivery
Frequently Asked Questions
What types of parts are best suited for the caterpillar shot blasting machine?
It is ideal for small castings, forgings, stamping parts, gears, and springs. It is particularly effective for parts that are not easily damaged by collisions during the tumbling process.
What are the advantages of the BE separator used in this machine?
The BE separator provides superior separation of shots and dust, which significantly increases productivity and extends the service life of the blasting blades.
How does the machine handle dust and environmental concerns?
The machine is equipped with a high-efficiency bag dust collector. This ensures that dust emission concentrations remain well below national standards, providing a safer and cleaner working environment.
What is the standard warranty period and after-sales support?
We provide a 12-month machine warranty. Our service team responds to inquiries within 24 hours to ensure minimal downtime for your production line.
Can the blasting speed be adjusted for different materials?
Yes, the machine supports three different projectile speeds (75 m/s, 80 m/s, and 85 m/s) to accommodate various surface strengthening and cleaning requirements.
Does the machine support automated production lines?
Absolutely. While it can be used as a standalone unit, it is designed with the flexibility to be integrated into existing automated production wiring for continuous operation.
