Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine for the casting industry in metal casting production.
| Code | Items | Parameters |
|---|---|---|
| 1 | Robot Cell (FANUC) | M20iD/35 |
| 2 | Sand Belt Machine | 1421*1625*2385mm |
| 3 | Cloth wheel polishing machine | 1000*1500*2200mm |
| 4 | Double-layers feeding table | Double-layers feeding table |
| 5 | Fixture | 400 mm |
| 6 | Max. Power of sand belt machine | 16 KW |
| 7 | Max. Power of cloth wheel polishing machine | 17.5 KW |
| 8 | Machine base | - |
| 9 | Voltage | 380V |
| 10 | Sand Belt specification | 4000MM/2500MM |
| 11 | Max. Liner speed of grinding | 29M/S |
| 12 | Max. Liner speed of polishing | 45M/S |
| 13 | Three-phase induction motor | 3KW-4P (1440r/min) |
| 14 | Air Pressure | 0.4~0.7Mpa |
| 15 | Machine size | 2400*3800*2700mm |
| 16 | Total Weight | 4000KG |
| 17 | Air cylinder | AirTAC |
| 18 | Bearing | NSK |
| 19 | Open guide slide block | LSPB |
| 20 | Open linear guide | LSPB |
| 21 | Three-phase induction motor | Planet |
| 22 | HMI | Delta |
| 23 | PLC | Delta |
| 24 | Cloth wheels dimension | Dia. 600; Width can be customized. |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | - |
| 2 | Service response time | Within 24 hours | - |
| 3 | Installation and Commissioning Fees at End User Site |
• Within 10 days included • Over 10 days: USD 200 per day and per person plus travel costs and accommodation • Translator cost paid by end user, additional travel costs, meals, accommodation |
- |
A1: This machine is extensively utilized in metal casting production, specifically for faucets, automobile spare parts, locks, door handles (including Zamak handles, door hinges, aluminum handles), and automotive components such as bumpers, supports, bars, and wheel rims.

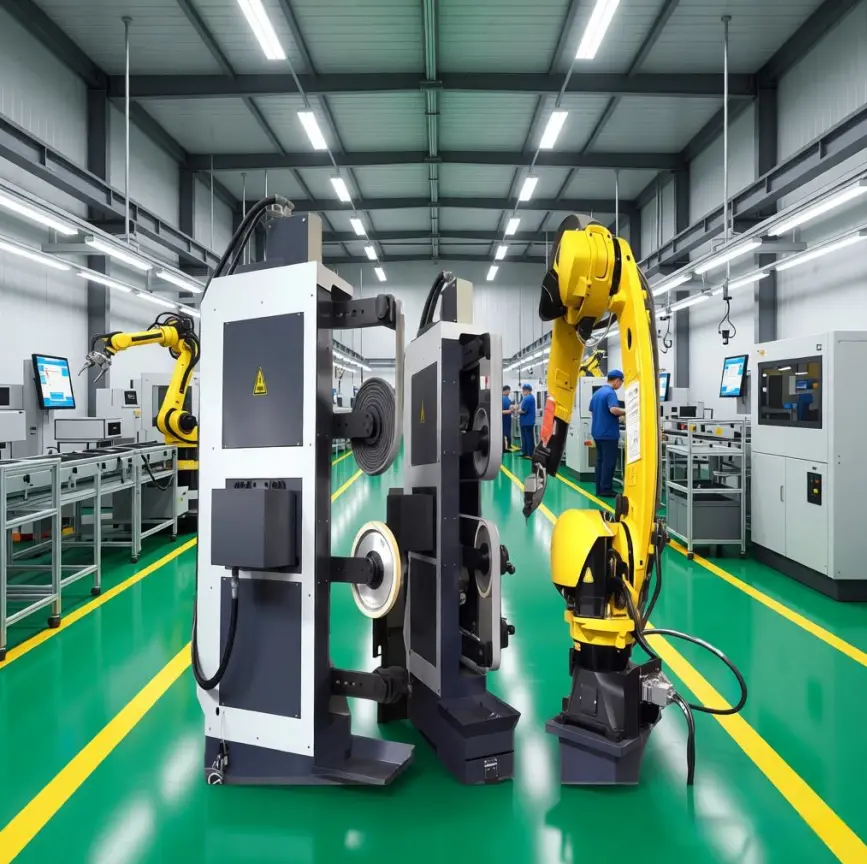

A2: The system incorporates a premium FANUC Robot Cell (Model M20iD/35), a 16 KW sand belt machine, and a 17.5 KW cloth wheel polishing machine. It operates under standard 380V voltage with an operating air pressure ranging from 0.4 to 0.7Mpa.
A3: Yes. While the standard diameter of the cloth wheels is 600mm, the width parameter can be fully customized to align with your specific manufacturing and layout requirements.
A4: The delivery timeline is typically 90 days after the contract is officially confirmed. Payment terms require a 50% TT deposit upon signing the contract and the remaining 50% TT payment prior to machinery delivery.
A5: We provide a comprehensive 12-month machinery warranty with a guaranteed 24-hour service response time. On-site installation and commissioning are included for the first 10 days at the end-user site.
