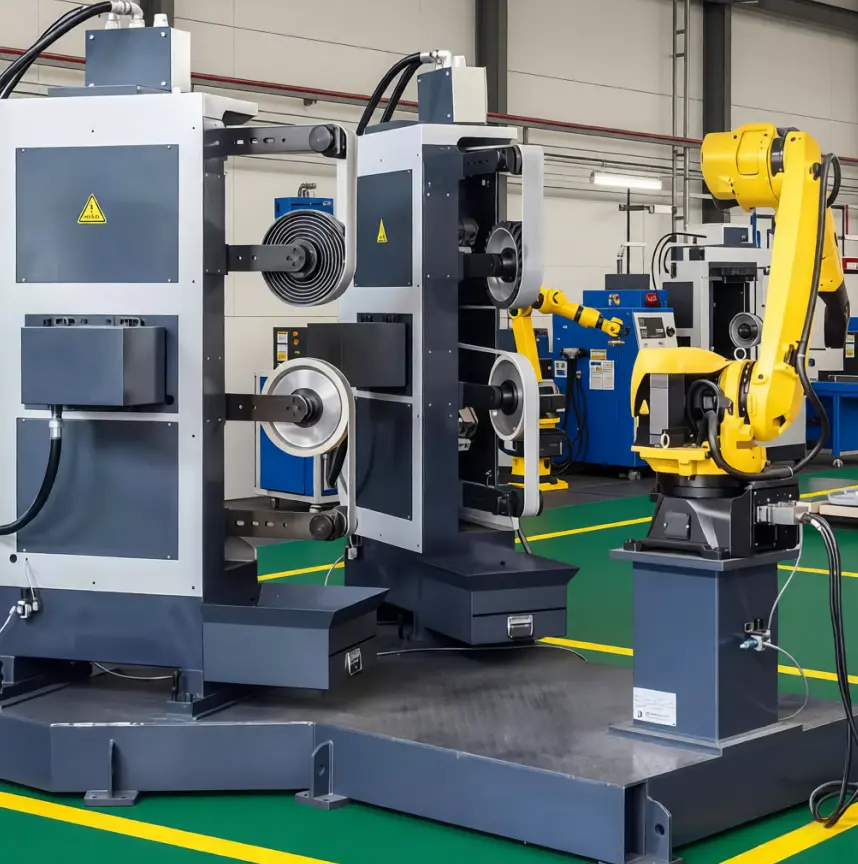

China Automatic Polishing Robot Cell for Metal Surface Finishing Supplier, Suppliers

1 / 5

China Automatic Polishing Robot Cell for Metal Surface Finishing Supplier, Suppliers

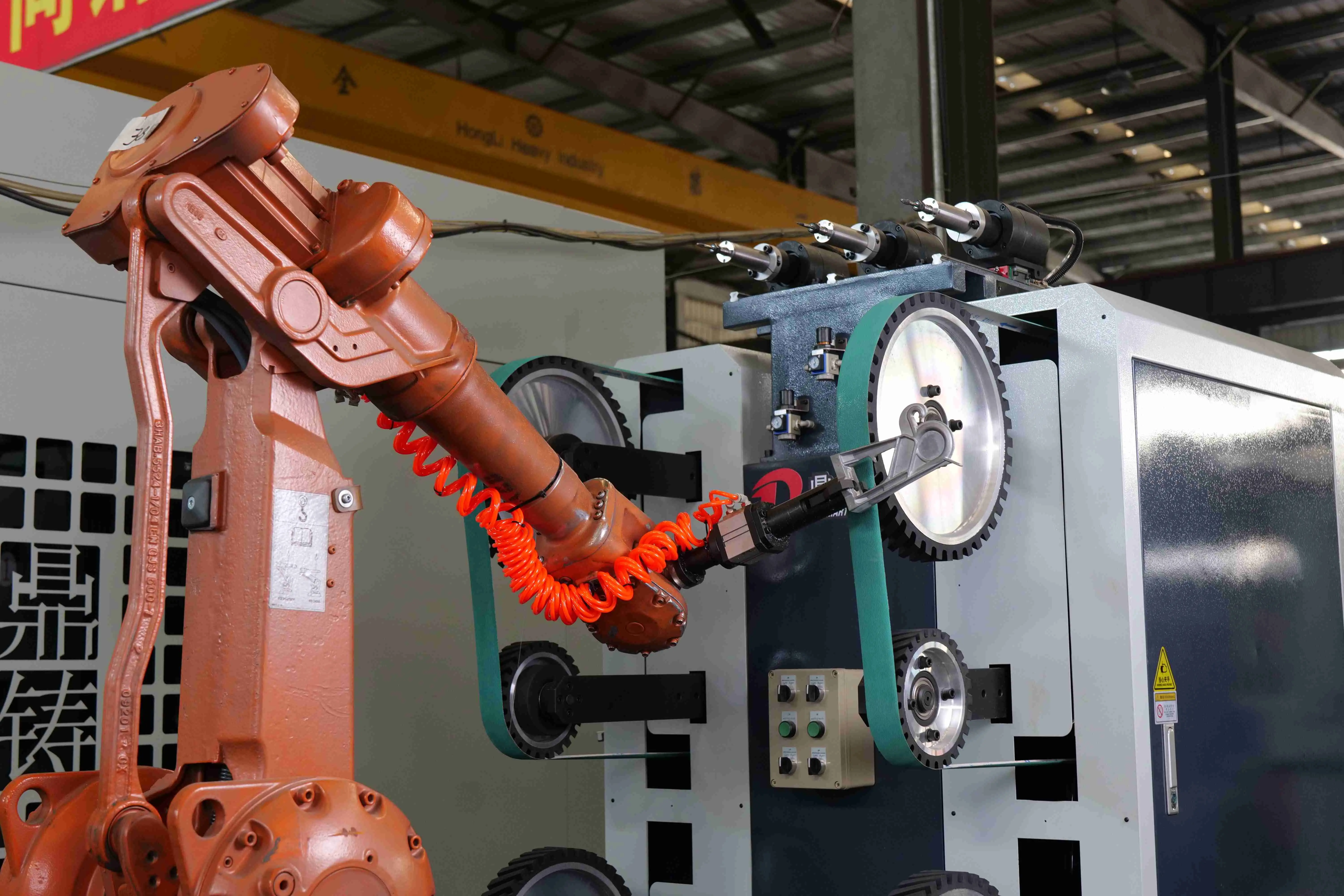

â— Integrated polishing robot cell for automated metal surface finishing production lines

â— Designed specifically for complex faucet curves

â— Fully automatic robotic polishing process

â— Consistent surface finish for every batch

â— Intelligent force control system

â— Suitable for brass, stainless steel, aluminum

Send Inquiry

Product Description

Video Demonstration

Product Introduction

Industrial sand core shooting machine for metal casting production
Outstanding quality sand core shooting machine for the casting industry in metal casting production.

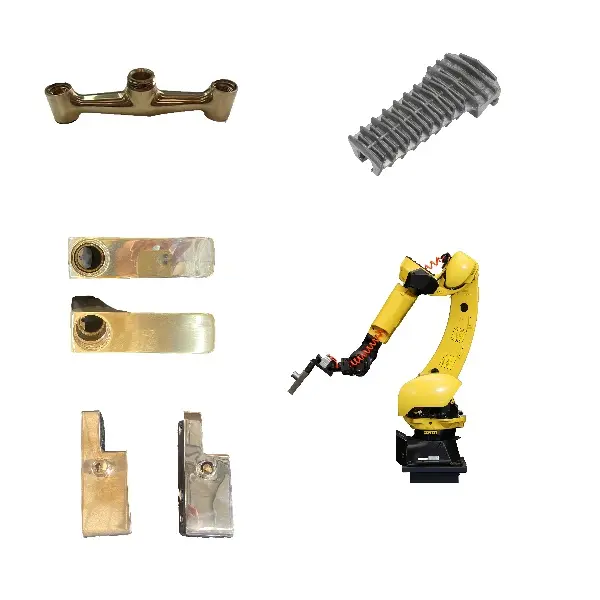

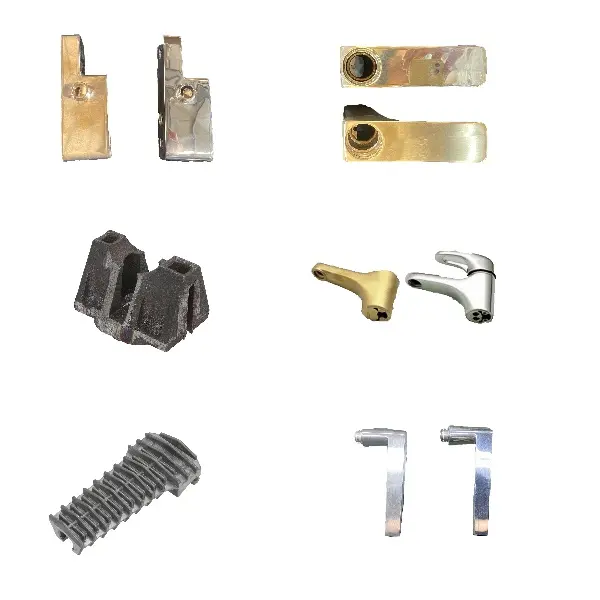

Applications

Faucets
Automobile spare parts
Locks and door handles, Zamak Handle, Door Hinges, Aluminum handles
Automotive components: bumpers, supports, bars, wheel rims

Machine Layout

Technical Parameters

Code	Items	Parameters
1	Robot Cell (FANUC)	M20iD/35
2	Sand Belt Machine	142116252385mm
3	Cloth wheel polishing machine	100015002200mm
4	Double-layers feeding table	Double-layers feeding table
5	Fixture	400 mm
6	Max. Power of sand belt machine	16 KW
7	Max. Power of cloth wheel polishing machine	17.5 KW
8	Machine base	-
9	Voltage	380V
10	Sand Belt specification	4000MM/2500MM
11	Max. Liner speed of grinding	29M/S
12	Max. Liner speed of polishing	45M/S
13	Three-phase induction motor	3KW-4P (1440r/min)
14	Air Pressure	0.4~0.7Mpa
15	Machine size	240038002700mm
16	Total Weight	4000KG
17	Air cylinder	AirTAC
18	Bearing	NSK
19	Open guide slide block	LSPB
20	Open linear guide	LSPB
21	Three-phase induction motor	Planet
22	HMI	Delta
23	PLC	Delta
24	Cloth wheels dimension	Dia. 600; Width can be customized.

Warranty and After-Sales Service

Code	Items	Details	Remarks
1	Machine warranty	12 months	-
2	Service response time	Within 24 hours	-
3	Installation and Commissioning Fees at End User Site	• Within 10 days included • Over 10 days: USD 200 per day and per person plus travel costs and accommodation • Translator cost, additional travel costs, meals, and accommodation will be paid by end user	-

Important Notes

1. Random attached 1 set fixture, buffs, and polishing wax.

2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.

3. Delivery time: 90 days after contract is confirmed.

Office & Facilities

Production Workshop

Professional Team

Application Cases

Exhibitions & Global Presence

Certifications

Packing & Delivery

Frequently Asked Questions

Q1: What are the primary applications of this sand core shooting machine? +

This industrial sand core shooting machine is designed for metal casting production. It is highly suitable for manufacturing components like faucets, locks, door handles, Zamak handles, door hinges, aluminum handles, and various automotive spare parts (bumpers, supports, bars, wheel rims).

Q2: What is the typical delivery timeframe for the equipment? +

The standard delivery time is 90 days after the contract is officially confirmed and signed by both parties.

Q3: What are the standard payment terms for placing an order? +

Our payment terms require a 50% TT deposit after the contract is signed, with the remaining 50% TT balance paid before delivery.

Q4: What is covered under the warranty and after-sales service plan? +

The machine comes with a comprehensive 12-month warranty. In case of any technical support or service queries, our team guarantees a service response time within 24 hours.

Q5: Are installation and commissioning services included at the user site? +

Yes, onsite installation and commissioning services are included within the first 10 days. Beyond 10 days, a rate of USD 200 per day per person applies, along with travel costs, meals, and accommodation.

Q6: What additional items are randomly attached to the machine package? +

Each machine is delivered with 1 set of custom fixture, buffing tools, and high-quality polishing wax as random attached accessories.
