| Code | Item | Specification |
|---|---|---|
| 1 | Max. Weight of Sand Core | 8kg |
| 2 | Max. Size of Core Box (L x W x H) | 450 * 330 * 220 mm |
| 3 | Heating Plate (L x W) Heating plate installation contactor changed to Aviation plug match to Kludi Rak existing machine required. |
400 * 300 * 60 mm |
| 4 | Heating Power | 12.8 kw |
| 5 | Downward Stroke of Ejection Head | ≤30mm |
| 6 | Stroke of Mold Opening | ≤300mm |
| 7 | Max. Stroke of Core Remove | 150mm |

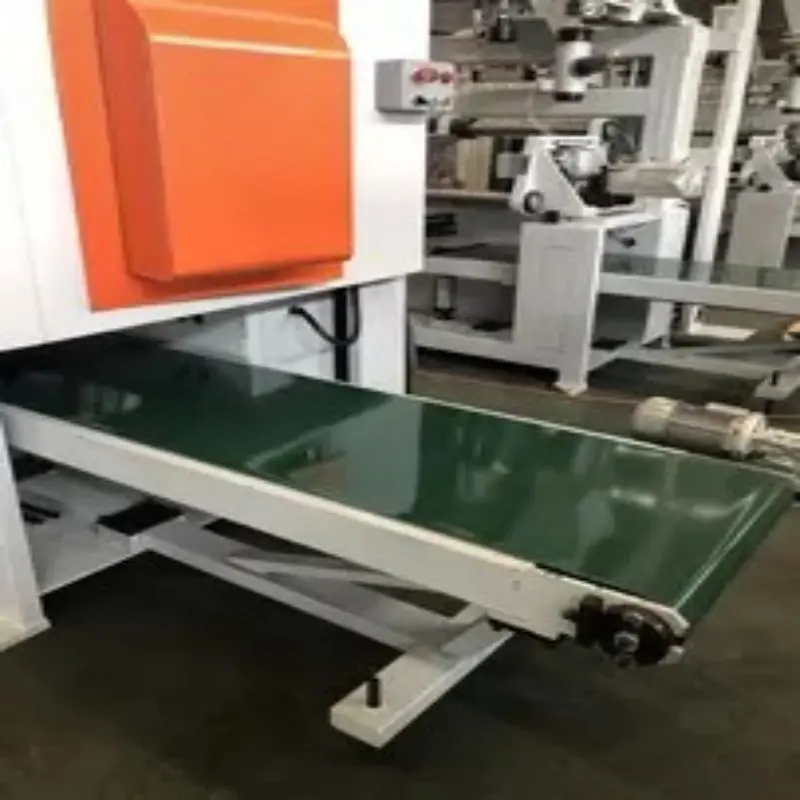

| 8 | Conveyor (L x W x H) | (2200 * 450 * 100) mm |
| 9 | Capacity of funnel | 25kg |
| 10 | Total Power | 13.8kw |
| 11 | Rising Angle of Conveyor | 2° ~ 4° |
| 12 | Speed of Transportation | 72mm/s |
| 13 | Machine Size (L x W x H) | 3500 * 1480 * 3400 mm |
| 14 | Total Weight | 2400kg |
| Code | Items | Details | Remarks |
|---|---|---|---|
| 1 | Machine warranty | 12 months | |
| 2 | Service response time | Within 24 hours | |
| 3 | Installation and Commissioning Fees at End User Site |
• Within 10 days included • Over 10 days: USD 200 per day and per person plus travel costs and accommodation • Translator cost paid by end user, additional travel costs, meals, accommodation |
This industrial sand core shooting machine is designed for metal casting production. It is widely used to manufacture sand cores for faucets, automobile spare parts, locks, door handles (including Zamak, door hinges, aluminum handles), and automotive components such as bumpers, supports, bars, and wheel rims.
The machine supports a maximum sand core weight of 8kg and a maximum core box size of 450 * 330 * 220 mm.
The heating power of the equipment is 12.8 kw, and the total operational power is 13.8 kw.
We offer a 12-month machinery warranty with a guaranteed service response time within 24 hours. On-site installation and commissioning are included for the first 10 days at the user's site.
The payment terms are a 50% TT deposit after the contract is signed, and the remaining 50% TT payment before delivery. The standard delivery timeline is 90 days after contract confirmation.
Yes, each machine comes with 1 set of random attached fixtures, buffs, and polishing wax as standard package contents.
